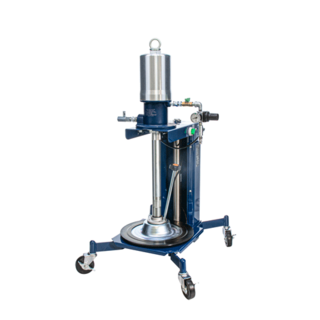

SKR110A50PAL (Grease lubricator for pails)
The SKR110A50PAL grease lubricator is a pump unit for grease that consists of a 110 type Air-Powered(R) pump on a cart with air lift.
Ideal for greasing vehicles and construction equipment, maintaining equipment in all fields, and greasing products on production lines.
· Inline high viscosity pump unit 50 x 1 ratio
[Usable Containers]
JIS Z 1620 Steel Pail Equivalent, or Resin Container Equivalent to This
[Compatible Materials *]Grease NLGI #0~2
*A note concerning materials. This applies to all high-viscosity products.
· Cannot be used with materials that contain food or slurry.
· The applicable range of NLGI No. (grease consistency) is provided as a rough approximation only.
· It may be impossible to use the product with some greases depending on their properties, even if they are within the scope of application for the product.
Features
・ Compact storage with telescopic slider lift.
・ Set the pail container as it is.
・ Entire lift rises with the pump, avoiding contact with the body.
◆ Special Specifications
| -PL Inductor Plate (Double-layered packing type) | -SW with Detection Switch |
| The double-layered packing prevents grease from leaking from the side of packings. Compared to the standard specification, it has a higher sealing performance, reducing the amount of air entering the pail and material remaining on the inner surface of the container. Suitable for greases with relatively high viscosity. | To prevent empty operation due to material depletion, a lower limit detection sensor is attached to the lift, which outputs a signal externally when the lift is lowered to a desired position. |
 |
 |
| Inductor plate 805143 (IDP-PAL/PL) | Detection switch |
Specifications
| Product No. | 881122 | 881204 | 881209 | 881123 | 881205 | 881210 | |
| Model | SKR110A50PAL | SKR110A50PAL-SL |
|||||
| (Standard) | -PL | -SW | (Standard) | -PL | -SW | ||
| Pump No. | 851728 | 851991 | |||||
| Maximum Discharge Pressure (MPa) | 35 | ||||||
| Material Connection Discharge Port | G1/4(F) | ||||||
| Air Connection Supply Port | Air coupler (PS-20PM) | ||||||
| Operating Air Pressure Range (MPa) | 0.2～0.7 | ||||||
| Temp Range (°C) | Ambient | 0～40 | |||||
| Material Temperature | 0～40 | ||||||
| Water Discharge (mL)/Cycle | 11 | 11 | |||||
| Net Weight (kg) | 34 | 35 | 34 | 35 | 34 | 35 | |
*Installation of a lower limit detector to prevent dry-running and air contamination is recommended. Please contact our sales office for details.
Dimentional drawing
SKR110A50PAL
Performance curve
*Avoid using in the ranges in blue in the graph below.
Downloads
Parts List
Accessories
| 851985 (HPG-G): High Pressure Grease Gun | 853502 (GMN-500): Digital Grease Gun |
| Ideal for maintenance and greasing of various machinery and equipment, as well as for greasing products in production lines. | Displays the amount of material discharged digitally. Allows for visual checking of discharge volume while filling. ●With LCD display, and flow meter |
 |
 |
| High-pressure Hose for Grease | Auto Switch: Sold as a Set of Two |
| 695062 (SKR-1.5M): 1.5 m 695050 (SKR-2M): 2.0 m 695034 (SKR-2.5M): 2.5 m 695049 (SKR-3M): 3 m 695098 (SKR-5M): 5 m 695335 (SKR-7M): 7 m 695099 (SKR-10M): 10 m ● With G1/4 fittings at both ends ● Normal working pressure: 34.5 MPa |
687043：Switch 687044：Mounting bracket Installed on the lift to prevent empty operation due to material depletion. When the lift descends to a desired position, a signal is output externally. |
 |
 |
· 805016 (IDP-PAL/PM) | 805143 (IDP-PAL/PL): Inductor Plate Kit
| 805016 (IDP-PAL/PM) | 805143 (IDP-PAL/PL) |
| Residual material in the pail is reduced as much as possible, allowing material to be used completely without waste. | Double-layered packing increases the seal performance, reducing the amount of air entering the pail and residual material on the inner surface of the container. Suitable for greases with relatively high viscosity. |
 |
 |
・ 805016(IDP-PAL/PM) :Perforated Metal Plate
| Perforated metal plate is attached to the bottom of the inductor plate. Residual material in the pail is reduced as much as possible, allowing material to be used completely without waste. Suitable for greases with relatively low viscosity. |
|
 |
| ・Image of Perforated Metal Plate in Use | |
| ●When Standard Inductor Plate Is Used | ●When Perforated Metal Plate Is Used |
| Pile of residual grease at the center | No residual grease at the center, and is almost completely absorbed into the plate. |
 |
 |
*The 805016 IDP-PAL/PM accessory must be assembled by the customer.
Example of Use
SKR110A50PAL can be used in a wide variety of fields.
Combination with options further expands its usage.
| -Filling | -Fixed Quantity |
| A High Pressure Grease Gun (optional) can be attached to the hydraulic nipple, to quickly apply grease to equipment. | By using with the (optional) metering valve, the grease application volume can be adjusted to a set amount. Improvement of work efficiency and quality can be expected by ensuring that the right amount of grease is applied to the product. |
 |
 |
| Option for use: High Pressure Grease Gun |
Option for use: Automatic Metering Valve KGK-400 series |
