Air-Operated Oil Transfer Pumps

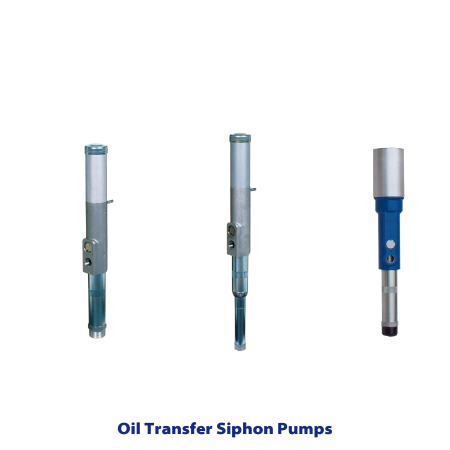

Air-operated oil transfer pumps. Drum pumps can be directly connected to a 200 L drum container, and siphon (short shank) types can be fixed to a container, stand, or wall surface.

Features

Specifications

Dimentional drawing

Performance curve

Downloads

Parts List

Drum Pumps/ Siphon Pumps


■ Specifications

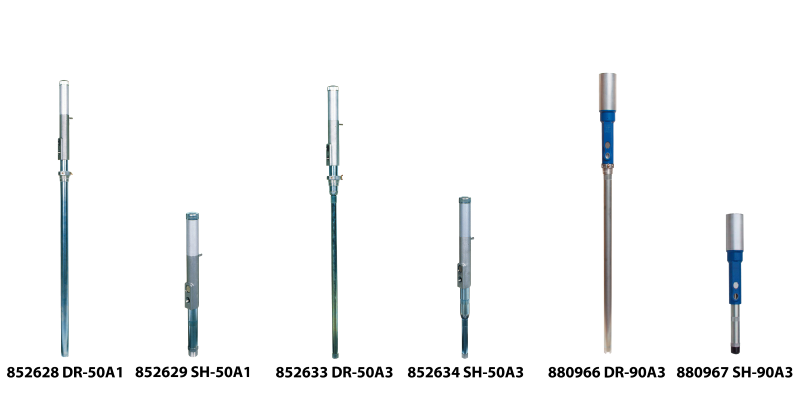

Model No. Model Pump Ratio Maximum Discharge Volume (L/min) Maximum Air Consumption (NL/min) Product Detail Page
852628 DR-50A1 1 : 1 29.0 460
852629 SH-50A1
852633 DR-50A3 3 : 1 12.0 470
852634 SH-50A3
880966 DR-90A3 3 : 1 22.0 550
880967 SH-90A3



■ Optional Accessories

Devices for the purpose of protecting pump, pipe and control valves.

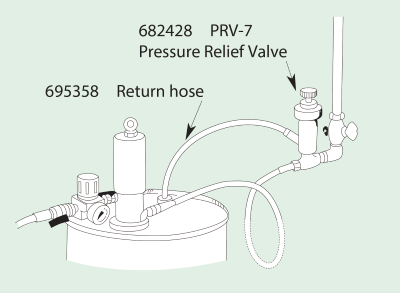

When internal pressure of pipe reaches predetermined limit, the Pressure Relief Valve opens and the excess oil is released from the pipe to the drum/tank through the Return Hose.






Wall/Floor Mounting Sets

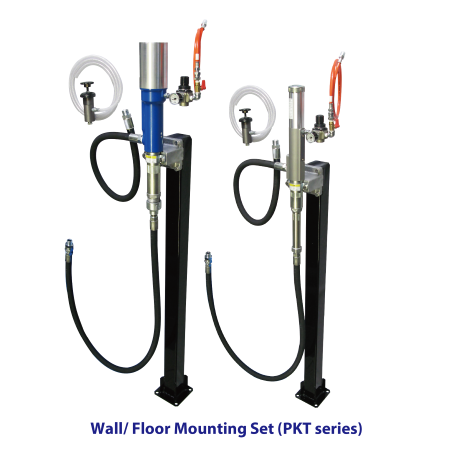

Wall/Floor mounting sets for OIl Transfer Siphon Pumps. (PKT series)


■ Components

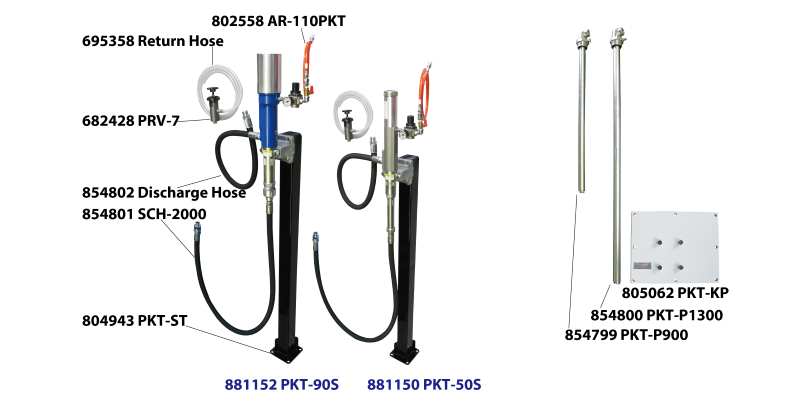

Description Wall Mounting Set Floor Mounting Set
Model No. 881149 881151 881150 881152
Model PKT-50 PKT-90 PKT-50S PKT-90S
Pump 852634 SH-50A3 880967 SH-90A3 852634 SH-50A3 880967 SH-90A3
Regulator 802558 AR-110PKT (with R1/4 × 1.5m Hose)
Suction Hose 854801 SCH-2000
Discharge Hose 854802 Discharge Hose (R3/4 × 1.5M)
Return Hose 695358 Return Hose
Mounting Bracket 800400 MTB-SH
Floor Mount Stand ---------- 804943 PKT-ST



■ Optional Accessories

Model No. Model Description Remark
854799 PKT-P900 Suciton Pipe for 200L Drum L= 906mm
854800 PKT-P1300 Suction Pipe for Tank L = 1,300mm
805062 PKT-KP Wall Mounting Panel Fits to PKT-50, PKT-90
