Hand Grease Guns
YAMADA is offering high quality, high performance and durable hand grease guns. Select the best model for your needs depending on size, capacity, grease loading method, etc. All grease guns are equipped with straight steel extension or 3-jaw steel extension as standard.
Features
|

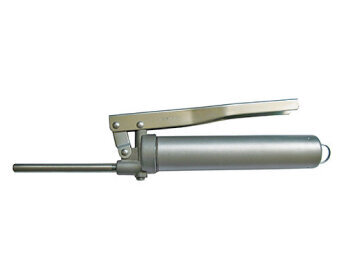

854629 KH-120 -Compact size light-weight grease gun with straight steel extension |

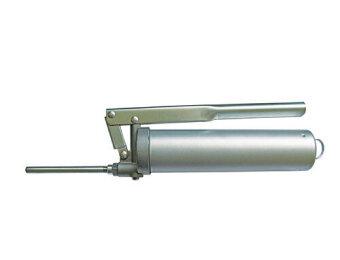

854627 KH-35 - Medium size hand grease gun with straight steel extension - Barrel with lipped follower for use with 400mL direct-filling or 210mL Bellows Cartridge |

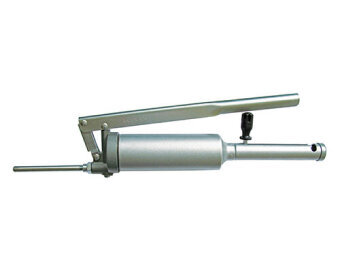

854628 KH-32  -Small size grease gun with straight steel extension -Barrel with lipped follower for use with 200mL direct-filling |

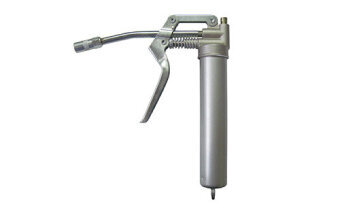

854655 KH-16 - Compact size pistol type grease gun with 3-jaw steel extension (CNP-2) - Barrel with lipped follower for use with 140mL direct-filling or 85mL Bellows Cartridge |
|

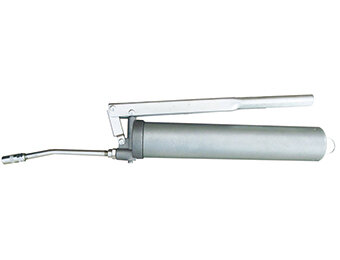

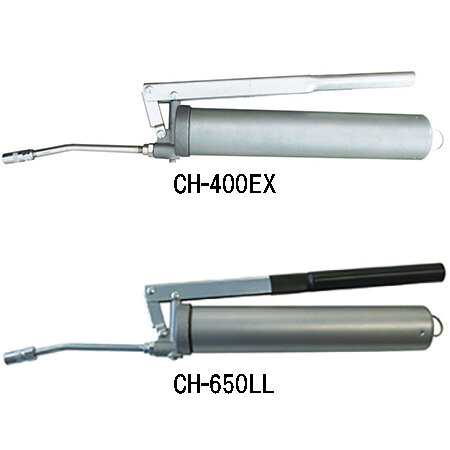

854669 CH-400 EX |

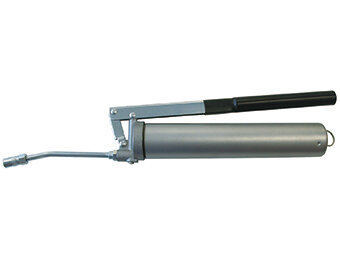

854787 CH-650LL - Standard size high-pressure grease gun with 3-jaw steel extension (CNP-1) -Ergonomic rubber grip on lever handle for comfortable use - Barrel with lipped follower for use with 500mL direct-filling or 420mL Bellows Cartridge |
|

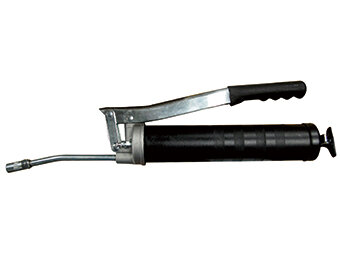

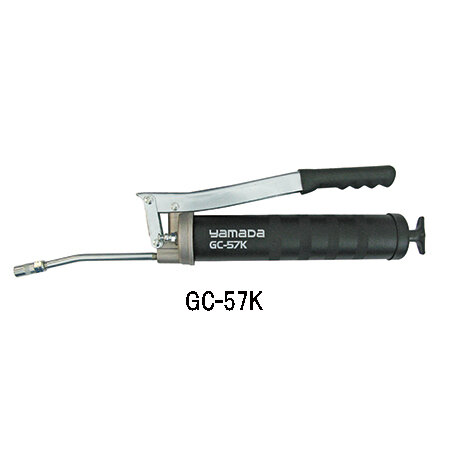

854654 GC-57K |
|
Specifications
| Model (Model No.) |
Length* （mm） |
Extension | Weight* (kg) |
Barrel Dia. (mm) |
Barrel Capacity (mL) |
Cartridge (mL) |
Discharge per Stroke (mL) |
Maximum Discharge Pressure (MPa) |
|
| KH-16 (854655) |
241 | CNP-2 | 0.44 | 38.0 | 140 | 85 | 0.4 | 10 | |
| KH-120 (854629) |
232 | HSP-1 | 0.51 | 38.0 | 140 | 85 | 0.6 | 20 | |
| KH-35 (854627) |
290 | HSP-1 | 1.11 | 59.6 | 400 | 210 | 1.0 | 25 | |
| KH-32 (854628) |
412 | HSP-1 | 1.27 | 59.6 | 200 | ー | 1.6 | 25 | |
| CH-400EX (854669) |
368 | CNP-2 | 1.30 | 59.6 | 550 | 420 | 1.0 | 50 | |
| CH-650LL (854787) |
401 | CNP-1 | 1.30 | 59.6 | 550 | 420 | 1.0 | 80 | |
| GC-57K (854654) |
371 | CNP-2 | 1.55 | 57 | 500 | DIN 1284 (400g) | 1.0 | 50 | |

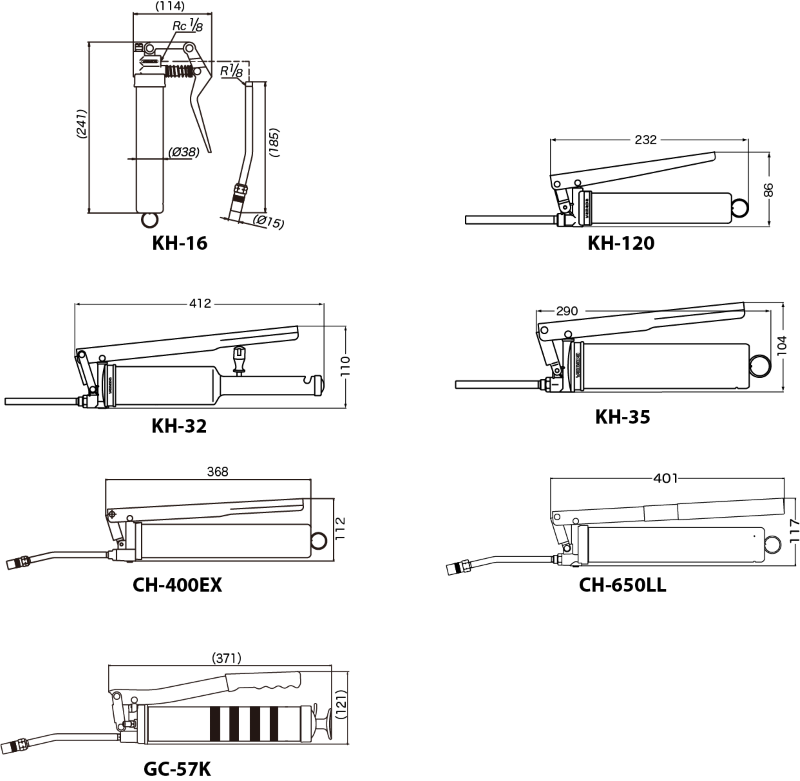

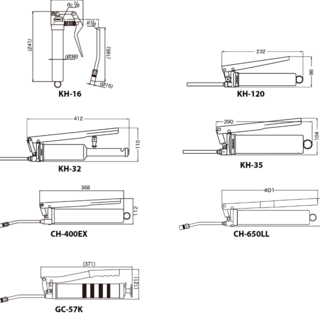

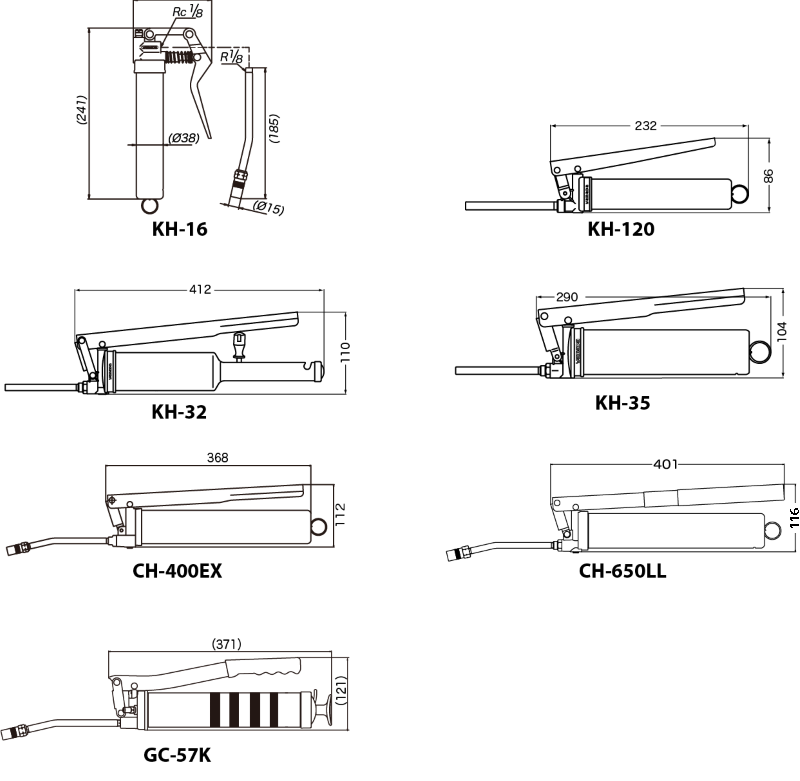

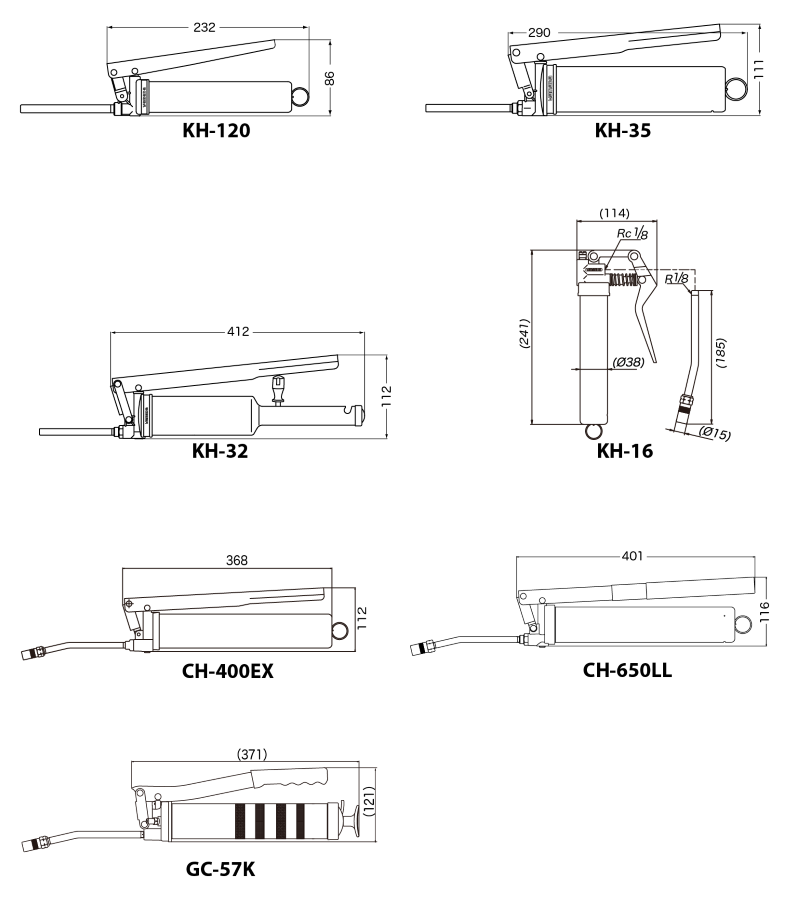

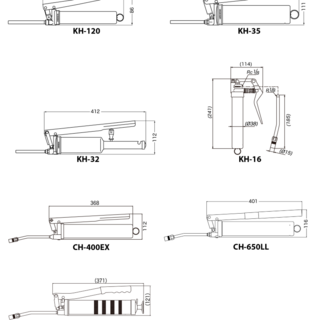

Dimentional drawing
Dimensions
Performance curve
Downloads
Parts List
Extensions
Optional steel and flexible extensions are available as optional accessories.
Click here for more details.
_HSP series_ |
_CNP series_ |
_SPK series_ |
_Grease Lock Couplers_ |
