Extensions

Optional steel and flexible extensions for grease fittings are available.
These can fit to all Hand Grease Guns.

■ Grease Fittings
Before purchasing an extension, be sure to identify the fitting type installed on your equipment.

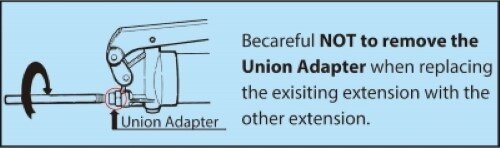

■ Read Before Use


Features

_■ HSP series_
- Simple straight steel nozzle.
product_feature_nozzle_HSP1.png product_feature_nozzle_HSP2.png

_■ CNP series_
- Steel nozzle with 3-jaw coupler.
_■ SPK series_
- Flexible hose extension.
- A wide variety of lengths of hoses and types of couplers.



 _■ Grease Lock Coupler_
- Easy coupling, Leak poof, Easy release!


Specifications

Dimentional drawing

Performance curve

Downloads

Download LiteratureCatalogs and Various Manuals

Parts List

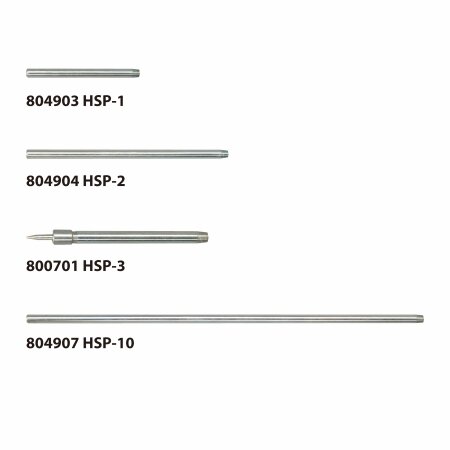

HSP series

■ Straight Steel Extension

Model No. Model Length
(mm)		 Weight
(g)		 Dimensions／Remarks

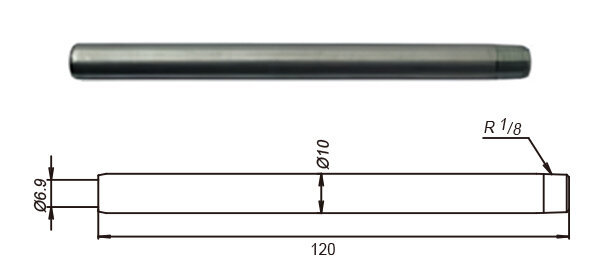

804903 HSP-1 120 46


For Hydraulic Fitting

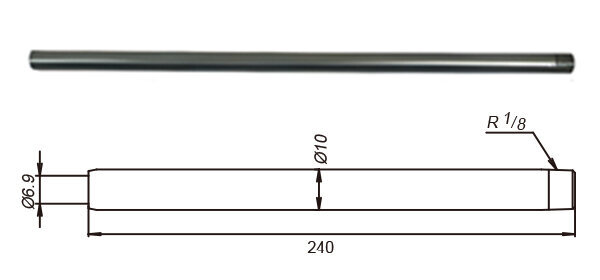

804904 HSP-2 240 96


For Hydraulic Fitting

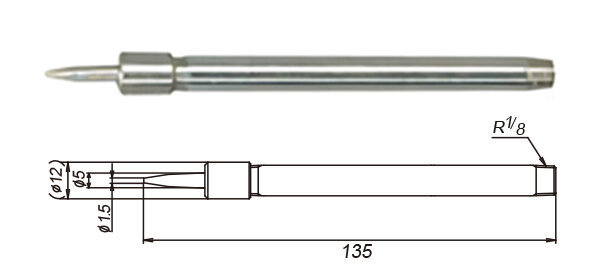

800701 HSP-3 135 56


Nozzle O.D. 1.5mm

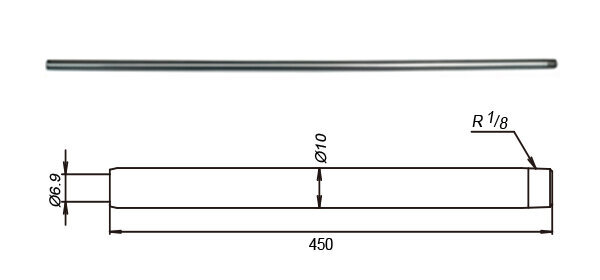

804907 HSP-10 450 188


For Hydraulic Fitting

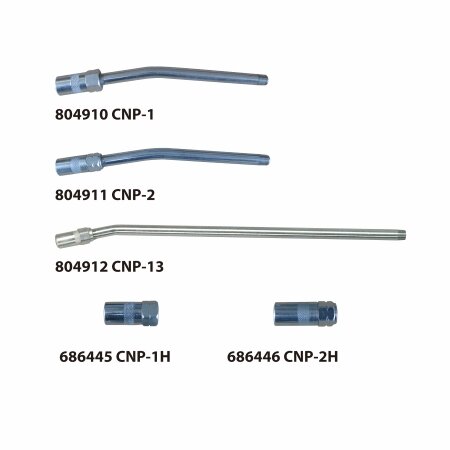

CNP series

■ Steel Extension with 3-jaw Coupler

Model No. Model Length
(mm)		 Weight
(g)		 Dimensions／Remarks

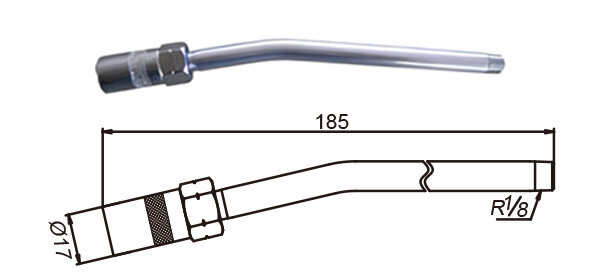

804910 CNP-1 185 93


For Hydraulic Fitting
O.D. 17mm

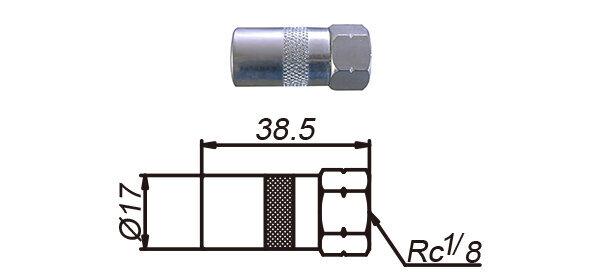

686445 CNP-1H 38.5 37

For Hydraulic Fitting
3-jaw Coupler for CNP-1

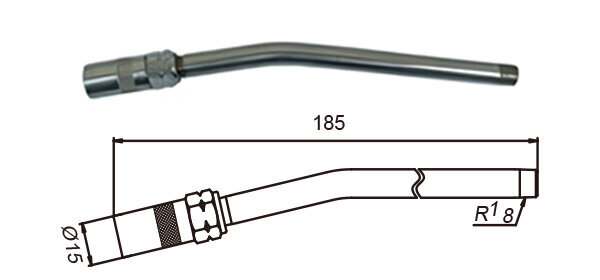

804911 CNP-2 185 93

For Hydraulic Fitting
O.D. 15mm
686446 CNP-2H 39 37

For Hydraulic Fitting
3-jaw Coupler for CNP-2

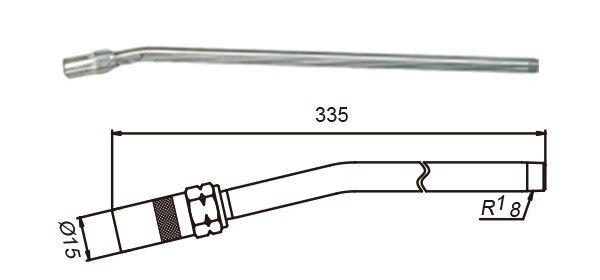

804912 CNP-13 335 180

For Hydraulic Fitting
O.D. 15mm

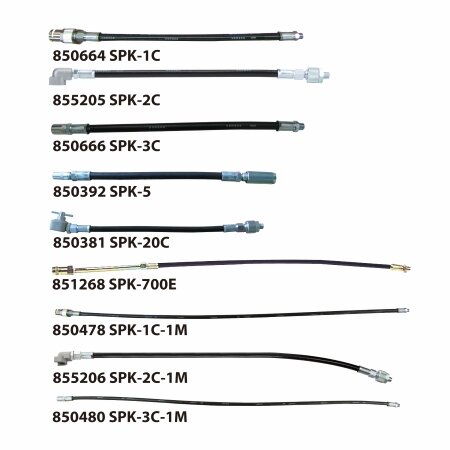

SPK series

■ Flexible Extension with Coupler

Model No. Model Length
(mm)		 Weight
(g)		 Dimensions／Remarks
For Hydraulic Fitting

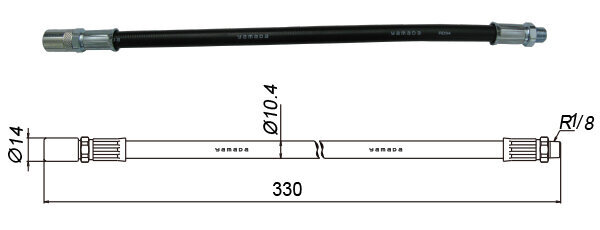

850666 SPK-3C 330 83

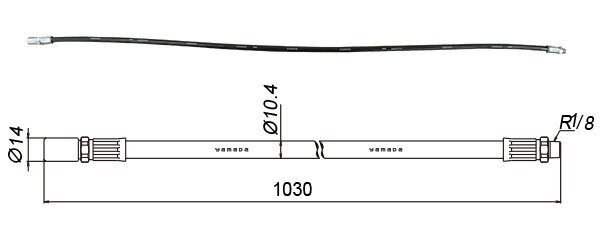

850480 SPK-3C-1M 1030 132 product_microhose_spec_850480.jpg
850392 SPK-5 418 300 product_microhose_spec_850392.jpg
Extension for CNP Series

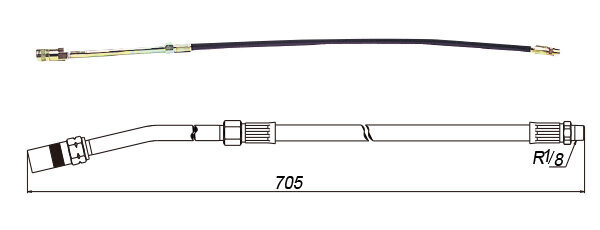

851268 SPK-700E 705 160 product_microhose_spec_851268.jpg
For Button Head Fitting
855205 SPK-2C 373 152 product_microhose_spec_855205.jpg

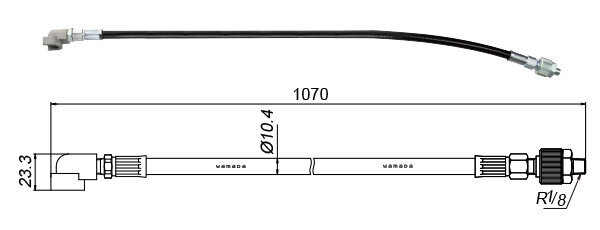

855206 SPK-2C-1M 1073 214 product_microhose_spec_855206.jpg

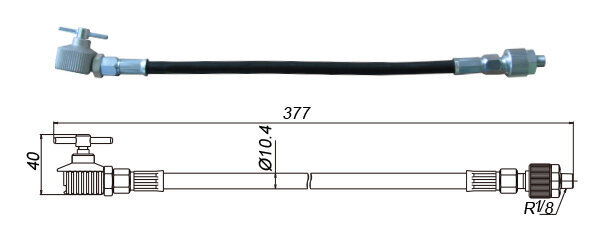

850381 SPK-20C 377 320 product_microhose_spec_850381.jpg
Large size Button Head Fitting
For Pin Type Fitting
850664 SPK-1C 355 141

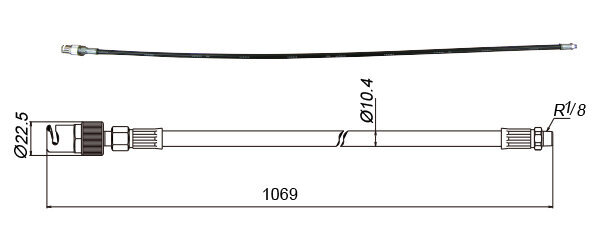

850478 SPK-1C-1M 1069 189 product_microhose_spec_850478.jpg

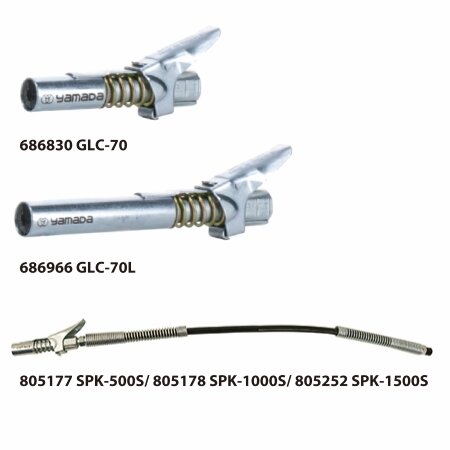

Grease Lock Coupler

■ Grease Lock Coupler

GLC-70-3.jpg GLC-70L-3.jpg

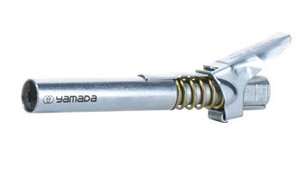

GLC-70 GLC-70L (Long type)
Model No. Model Operating pressure Connection Dimensions (mm) Weight
686830 GLC-70 69MPa Rc1/8 L89.6×Φ16 100g
686966 GLC-70L L137.3×Φ16 160g



■ Grease Lock Coupler with Micro® hose

Model No. Model Specifications

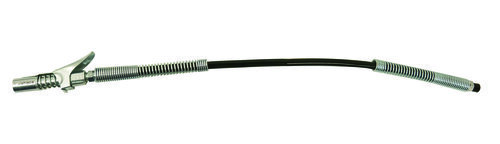

805177 SPK-500S 500mm (Micro® hose connection R1/8)
805178 SPK-1000S 1000mm (Micro® hose connection R1/8)
805252 SPK-1500S 1500mm (Micro® hose connection R1/8)
