140 Type (25 x 1, 38 x 1, 50 x 1) Divorced Pump Unit for Pails SR140PWAL-F · T series
Air-powered pressurized lift allows for stable transfer of high-viscosity materials.
The lift is raised and lowered by operating a valve. The airflow function makes it easy to remove the pump and inductor plate when switching pails.
・Model Change of SR140PWAL Series & New Inductor Plate (2026-06-17)
【Compatible Containers and Inductor Plates】
*This option is intended to be installed on units after the specification change. If you are considering installing it on a unit before the specification change (old model), please contact your nearest Yamada sales office in advance.
【Compatible Materials *】 Grease NLGI #0~3, Adhesives
*A note concerning materials. This applies to all high-viscosity products.
・Cannot be used with materials that contain food or slurry.
・The applicable range of NLGI No. (grease consistency) is provided as a rough approximation only.
・It may be impossible to use the product with some greases depending on their properties, even if they are within the scope of application for the product.
Features
| -F: Flat Inductor Plate | -T: Tube Inductor Plate |
| [Suitable Grease: No.1~2] | [Suitable Grease: No.1~3] |
| The wide seal allowance of the packing allows it to be used for containers of varying inner diameter dimensions, such as tapered cans. A perforated metal plate attached to the bottom of the inductor plate minimizes the amount of material remaining in the pail. This allows material to be used without waste until the very end. | The high sealing property of the packing makes it suitable for extremely high viscosity materials that require lift pressurization. |
 |
 |
Specifications
[Notice of Product Specification Change (Part Number Change)]
Due to design improvements of the lift base, Part Numbers will change for products manufactured from September 1, 2026.
*There are no changes to product model names or pump performance (discharge volume, pressure, etc.).
*Click here for details of the specification change.
| Part No. | Current: 881107New: 881257 | Current: 881110New: 881258 | Current: 881108New: 881259 | Current: 881111New: 881264 | Current: 881109New: 881265 | Current: 881112New: 881266 | |
| *New Part No. will be available from Sep. 1, 2026. | |||||||
| Model | SR140P25PWAL-F | SR140P25PWAL-T | SR140P38PWAL-F | SR140P38PWAL-T | SR140P50PWAL-F | SR140P50PWAL-T | |
| Pump No. | 854557 | 854558 | 854559 | ||||
| Max. Discharge Pressure (MPa) | 17.5 | 26.6 | 35.0 | ||||
| Material Connection (Outlet) | G3/4(F) | ||||||
| Air Connection (Inlet) | G3/8(F) | ||||||
| Supply Air Pressure Range (MPa) | 0.2–0.7 | ||||||
| Operating Temp. Range (°C) | Ambient | 0–60 | |||||
| Material | 0–80 | ||||||
| Discharge Volume (mL) / Cycle | 116.2 | 76 | 61.2 | ||||
| Weight (kg) | 61 | 63 | 61 | 63 | 61 | 63 | |
◆ Performance Curves
*Please avoid operating the pump within the blue-shaded area of the graphs below.
| Pump No. | ||
| 854557 | 854558 | 854559 |
 |
 |
 |
Dimentional drawing
Performance curve
Downloads
Parts List
Dimensions

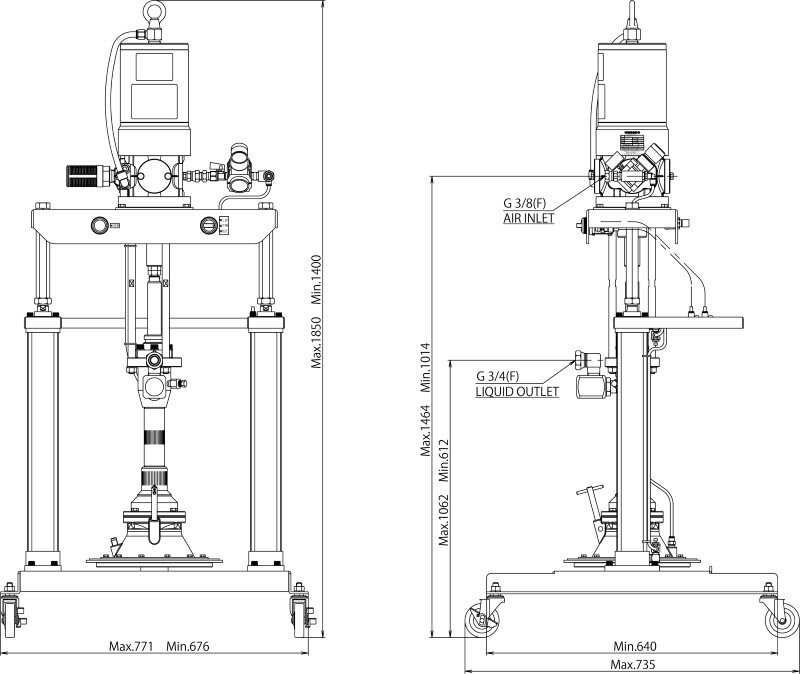

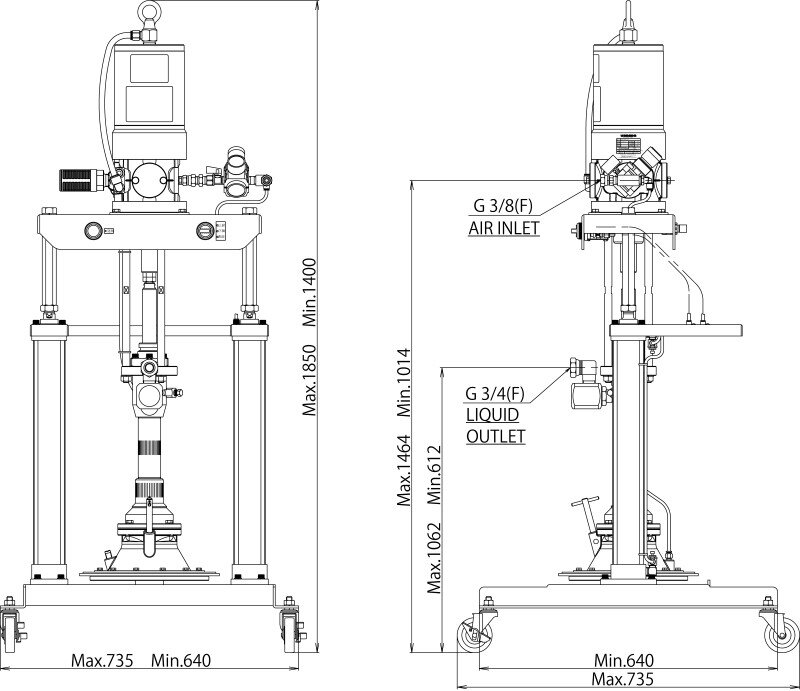

Dimensional drawings for the New Model (Available on September 1, 2026) and the Current Model (Old Model) due to design improvements of the lift base.
*Click on the images to view the enlarged drawings in a new window.
Options

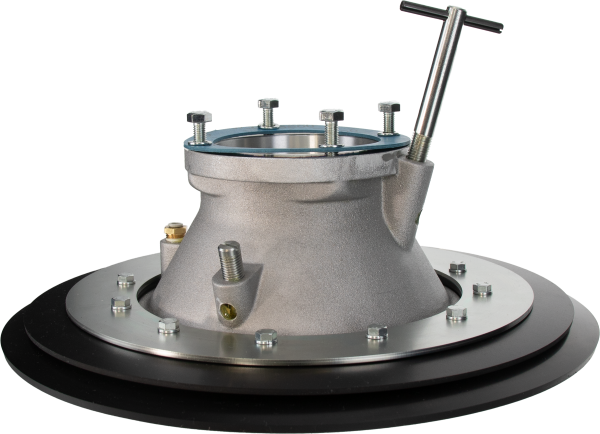

◆ Inductor Plate for 25 kg Resin Cans (805443 / IDP-140PWAL-K) Available Sept. 1, 2026
| This inductor plate is compatible with 25 kg resin pails. *This option is intended to be installed on units after the specification change. If you are considering installing it on a unit before the specification change (old model), please contact your nearest Yamada sales office in advance. Click here for details of the specification change. *Click on the images to view enlarged views in a new window. |
 805443 / IDP-140PWAL-K

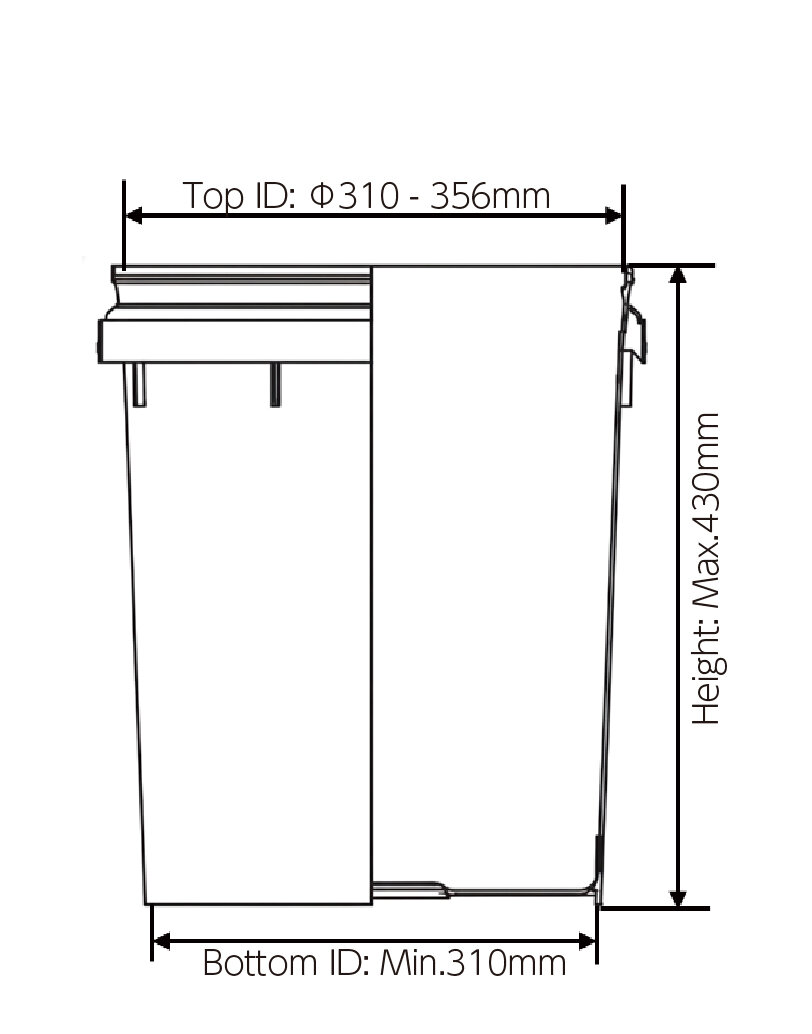

[Compatible 25 kg Resin Pail Sizes]
 【Compatible Dimensions】 |
◆ Auto Switch & Oil Cup
|
Auto Switch  By installing this switch on the air cylinder of the lift, it transmits an external signal when the lift reaches a designated height. 687062 (SR140-SW)
Oil Cup (Sold as a 3-piece Set)  When handling high-viscosity materials such as adhesives, filling this cup with fluid prevents the material that seeps from the plunger area from solidifying. 716900: Oil Cup (Yutou)
682771: Valve 685775: O-ring 3-Piece Set
|
