140 Type (25 x 1, 38 x 1, 50 x 1) Divorced Pump Unit for Drum Containers SR140DAL series
This is a pump unit for 200 L drum containers with a 140 type Air-Powered(R) pump mounted on an air-powered lift. Ideal for supplying putty, adhesive, grease, etc. to multiple equipment. In addition, the lift's pressurizing function makes it easy to set drum containers.
3 types of pump ratios are available, so select the pump that meets your requirements.
[Usable Containers]
JIS Z 1600 Steel Open-head Drum or JIS Z 1601 Steel Tight-head Drum or Equivalents
[Suitable Materials *] Grease NLGI #0~2 , Adhesives
*A note concerning materials. This applies to all high-viscosity products.
· Cannot be used with materials that contain food or slurry.
· The applicable range of NLGI No. (grease consistency) is provided as a rough approximation only.
· It may be impossible to use the product with some greases depending on their properties, even if they are within the scope of application for the product.
Features
Specifications
| Product No. | 881113 | 881114 | 881115 | |
| Model | SR140P25DAL | SR140P38DAL | SR140P50DAL | |
| Pump No. | 854560 | 854561 | 854562 | |
| Maximum Discharge Pressure (MPa) | 17.5 | 26.6 | 35 | |
| Material Connection Discharge Port | Rc1/2 | |||
| Air Connection Supply Port | G 3/4(F) | |||
| Operating Air Pressure Range (MPa) | 0.2～0.7 | |||
| Temp Range (°C) | Ambient | 0～60 | ||
| Material Temperature | 0～80 | |||
| Water Discharge (mL)/Cycle | 116.2 | 76 | 61.2 | |
| Net Weight (kg) | 173 | |||
Dimentional drawing
Anchor Mounting Dimensions (For left/right mounting)
Anchor Mounting Dimensions (For front/rear mounting)
SR140DAL
SR140DAL

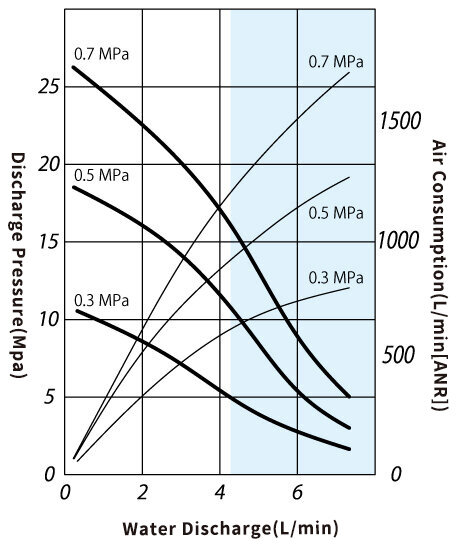

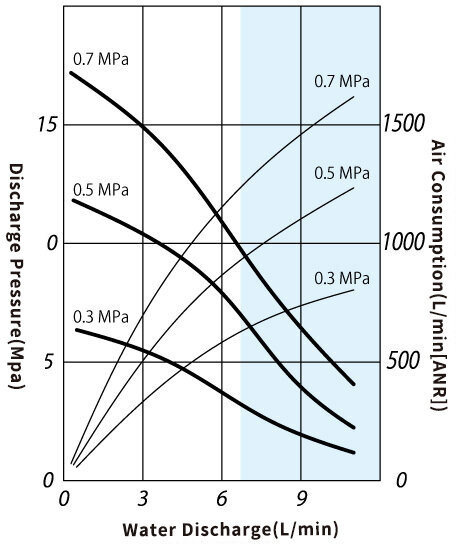

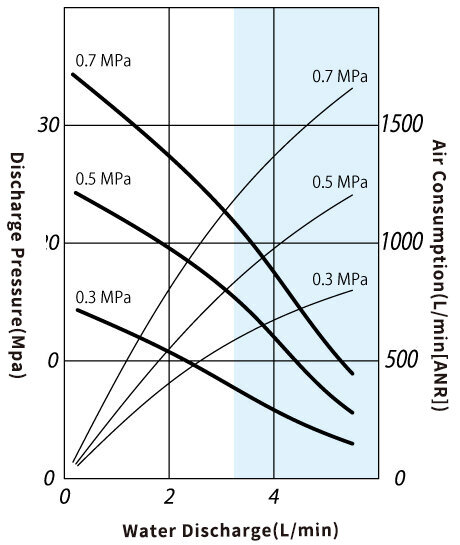

Performance curve
*Avoid using in the ranges in blue in the graph below.
| Pump No. | ||
| 854560 | 854561 | 854562 |
 |
 |
 |
Downloads
Parts List
Accessories
◆ Auto Switch & Oil Cap
| Auto Switch | Oil Cap: Sold as a Set of Three. |
| When attached to the air cylinder of a lift, it sends a signal externally when the lift is at the desired height. | Filling the cup with solution when using high-viscosity materials such as adhesives prevents adhesion of the material oozing from the plunger section. |
| 687062（SR140-SW） | 716900：Oil Cylinder 682771：ValveSet of three 685775：O-ring |
 |
 |
