The oil drain is designed to reliably collect waste oil, facilicating the clean and quick transfer of accumulated waste oil, allowing for the steady processing of waste oil.

Features

Specifications

Dimentional drawing

Performance curve

Downloads

Parts List

Waste Oil Drainer

The serviceable oil drain features a built-in manual rotary pump and large receiving pan for easy operation, and the height of the receiving pan can be easily adjusted.

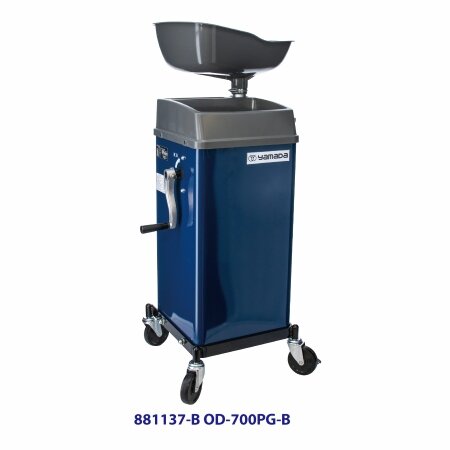

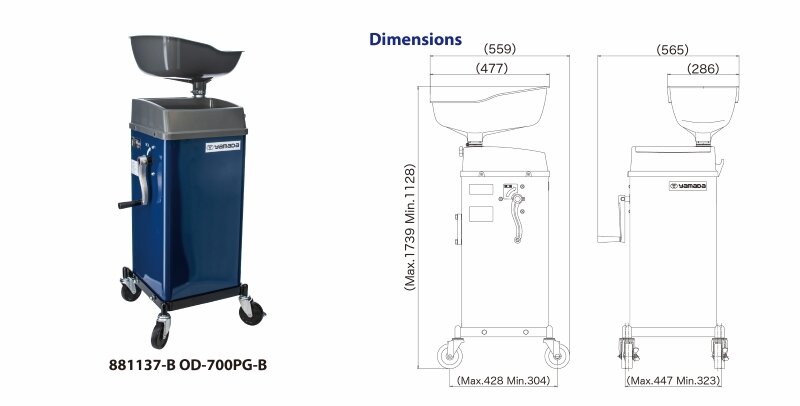

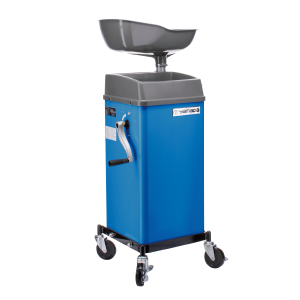

od-700PG-B.png881137-B
OD-700PG-B
Model No. 881137B
Model OD-700PG-B
Height (mm) max. 1,739 / min. 1,128
Capacity (L) 55
Weight (kg) 17.5
Pump 685300 Hand Rotary Pump
Maximum Discharge Volume approx. 10L per 40 revolutions




top_lid.png level_gauge.png caster.png

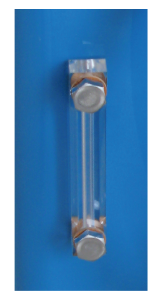

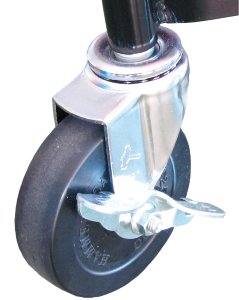

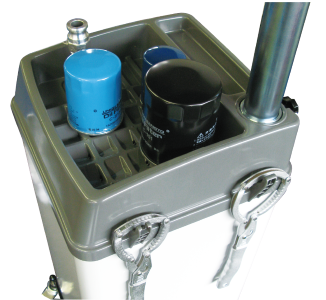

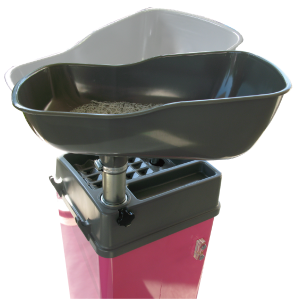

The receiver pan can be rotated 360° for easy positioning. The top lid comes with a handy accessory compartment for storing tools and elements. Large, easy-to-read oil level gauge Adoption of casters with better handling over gratings and conduits.

Air-Operated Multi Oil Changer

Built-in air-driven diaphragm pump also serves as an oil changer for removing oil from vehicle level gauges by using the attached extraction nozzle to vacuum out the pump.

od-700PG-B.png881140

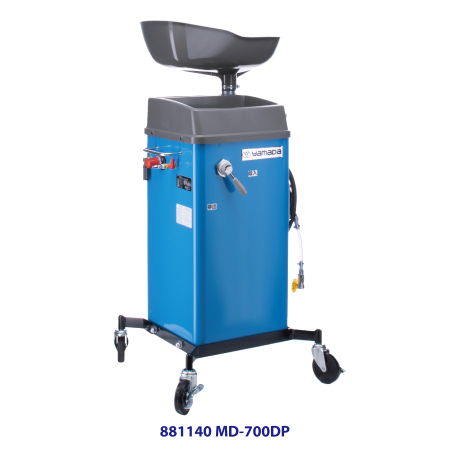

MD-700DP
Model No. 881140
Model MD-700DP
Suction Volume* (L/min) 1.9 or more
Dischrage Volume* (L/min) 4.2 or more
Capacity (L) 55
Dimensions (mm) Height: max. 1,739/min. 1,128
Width: 522
Depth: 616
Weight (kg) 19.0
Pump 853654 DP-10BAN
*Operating pressure: 0.7MPa




suction_hose_md.png top_lid_md.png nozzle_md.png

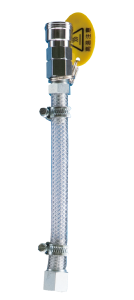

Partially transparent suction hose allows fot the confirmation of the flow of waste oil.

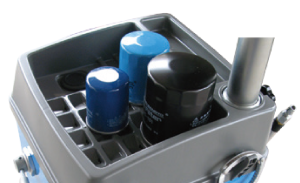

The top lid is equipped with a convenient storage space for drain plugs and other small items.

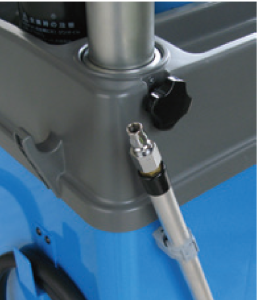

Attached nozzle
Material: PFA
O.D. : Φ6.1/ I.D. : Φ4.5

switching_md.png level_gauge.png caster.png

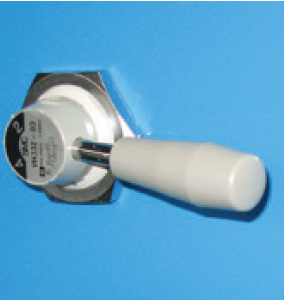

Easy switching between suction and discharge by a simple operation of the lever. Large, easy-to-read oil level gauge. Adoption of casters with better handling over gratings and conduits.
