Hand-Operated Oil Pumps
（全体の説明文を入れる）

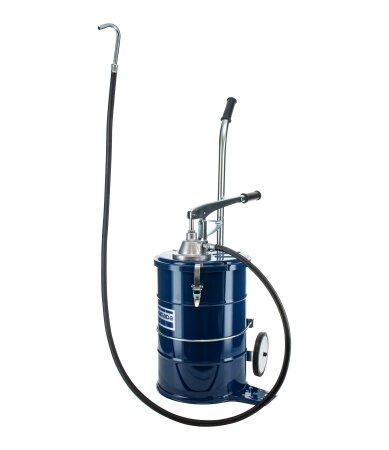

Oil Bucket Pumps EXS Series
Ready-to-assemble economical series.
The small package can reduce shipping cost.

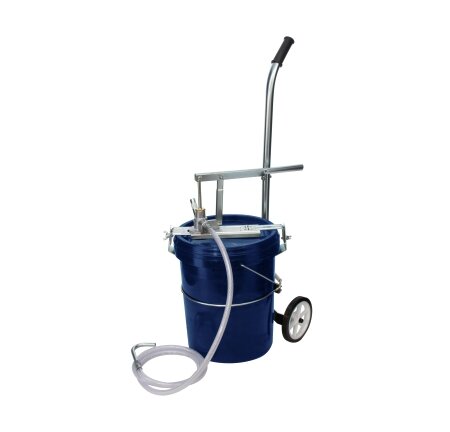

Oil Pail Pump
Simple pump that can be mounted on commercially
available 20L pail. Oil meter STB-M can be mounted.

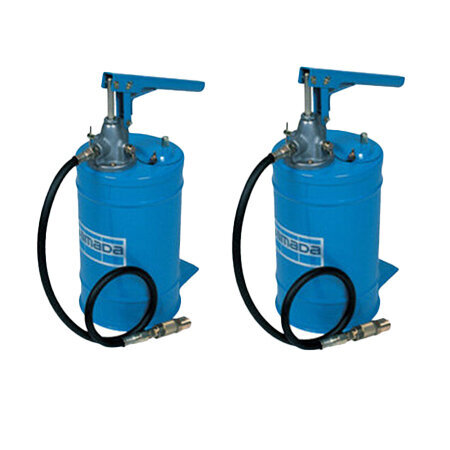

High Viscosity Oil Pumps

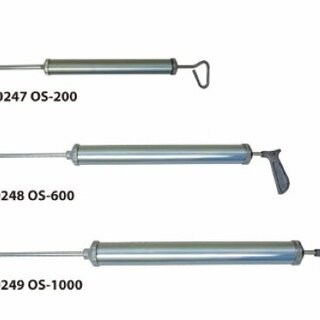

Hand Oil Suction Guns
Simple syringe pump for oil.

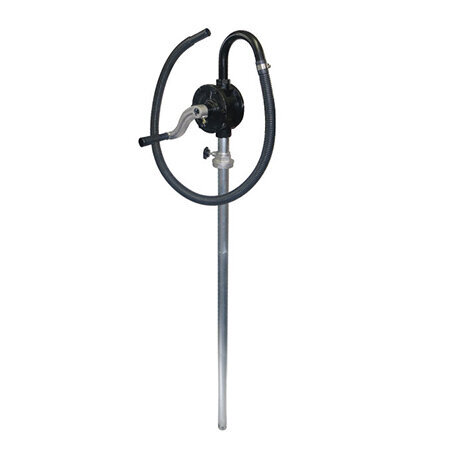

Oil Dispenser
Standard type pump for drums. Light-weight aluminum construction allows easy replacement of
drums. The pump is suitable for pumping low viscosity oil.
Features
Specifications
Dimentional drawing
Dimensions
Performance curve
Downloads
Parts List
Oil Bucket Pumps EXS Series
Specifications
| Model No. | Model | Capacity（L） | Discharge Volume per Cycle (mL) | Stroke Length (mm) |
Weight (kg) |
Standard Accessories |
| 880626 | STB-60EXS | 20 | 40.0 | 50.0 | 10.4 | 802519 Oil Hose Nozzle with Assy …......................1 805339 OM-30MN…………………………………….1 |
| 880627 | STB-70EXS | 9.0 | 802519 Oil Hose Nozzle with Assy …......................1 |

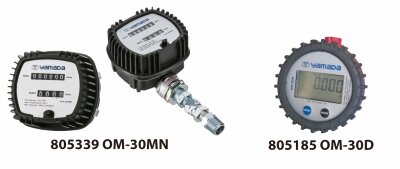

Optional Accessories
| Model No. | Model | Description | Fits Model |
| 805339 | OM-30ＭN | Mechanical Oil Meter | STB-50/60/70 |
| 805185 | OM-30D | Electronic Oil Meter |

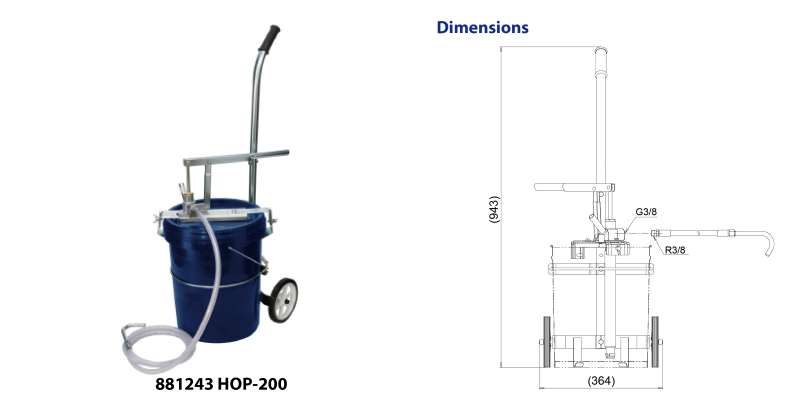

Oil Pail Pump
Specifications
| Model No. | Model | Discharge Volume per Cycle (mL) |
Stroke Length (mm) |
Weight (kg) |
Standard Accessories |
| 880571 | HOP-20 | 60.0 | 110.0 | 1.9 | 802823 STB-2MW Hose Nozzle Assy 2M (Vynil)…...1 851676 S-10N Dolly…………………………………….1 |

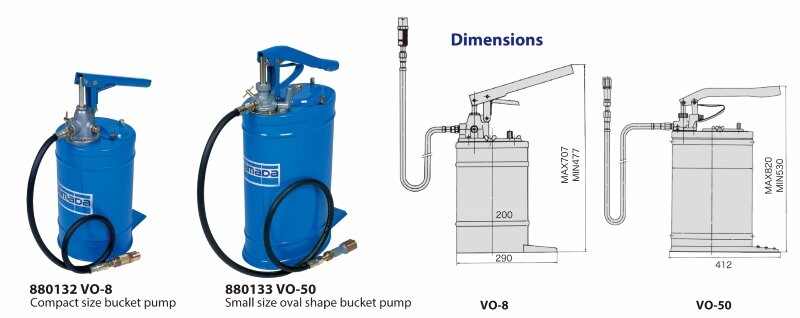

High Viscosity Oil Pumps
（後日説明文を記入）
Specifications
| Model No. | Model | Discharge Volume per Cycle (mL) |
Weight (kg) |
Standard Accessories |
| 880132 | VO-8 | 20.0 | 5.0 | 695056 VO8-1M 1/4 x 1m Hose…………………...1 800772 VO8-15 Button Head Coupler……………1 |
| 880133 | VO-50 | 24.0 | 9.6 | 695055 VO50-1.5M 3/8 x 1.5m Hose……………...1 800894 VO50-15 Button Head Coupler…………1 |
Optional Accessories
800772 VO08-15
800894 VO50-15
800628 VO50-22

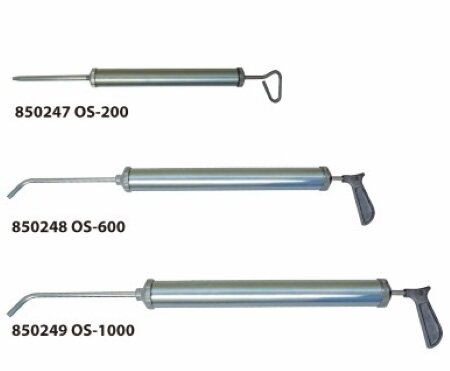

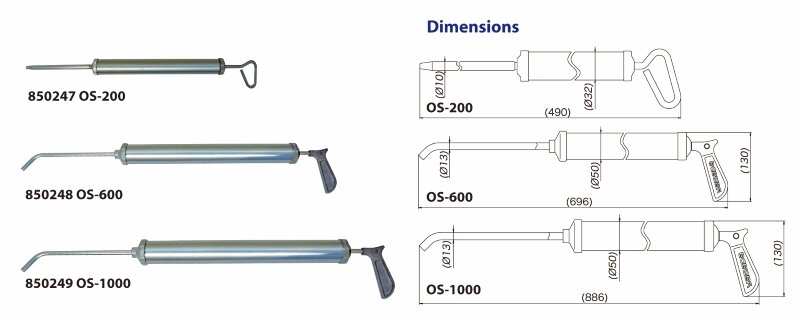

Hand Oil Suction Guns
Specifications
| Model No. | Model | Length (mm) |
Weight (kg) |
Capacity (mL) |
| 850247 | OS-200 | 490 | 0.57 | 200 |
| 850248 | OS-600 | 696 | 1.28 | 600 |
| 850249 | OS-1000 | 886 | 1.77 | 1000 |
Oil Dispenser
Specifications
| Model No. | Model | Suitable Liquid | Gear ratio | Max. Discharge Volume* | Weight(kg) |
| 686836 | RDS-1 | Light oil, Kerosene, lubricant, Low-medium vicosity oil |
1:1 | 10L/40rev | 3.6 |
* Reference values for engine oil (10W-30) and oil temperature 20℃. These are not guaranteed values.
