Air-Operated Oil Lubricators

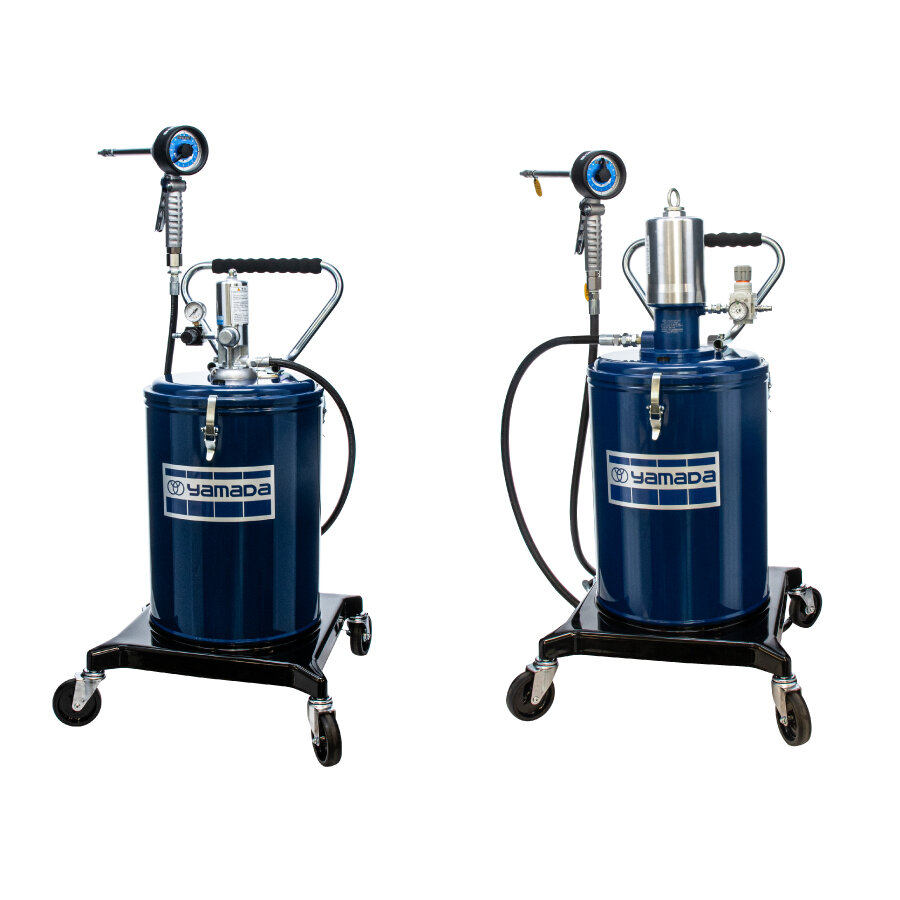

The new portable oil lubricator SGR series features a comfortable grip for easy handling and maneuverability, and is equipped with a convenient gun holder and large casters for smooth mobility.

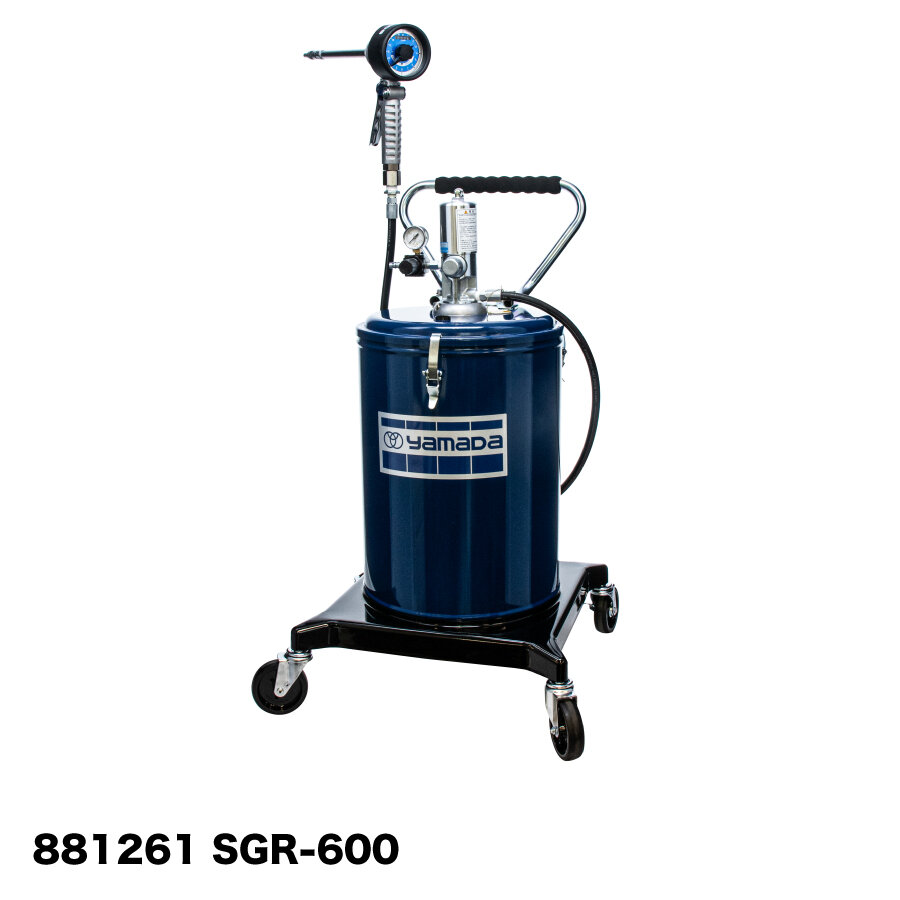

<SGR-600>
Ideal for routine lubrication of machinery and vehicles. Equipped with an air-operated oil pump in a 50 L cabinet, it delivers a 1.8:1 pump ratio (max. pressure: 1.2 MPa) and a discharge rate of 7 L/min.
<SGR-1100>
Designed for heavy-duty job sites requiring high-volume oiling, such as construction equipment and large vehicles. Equipped with an air-operated oil pump in a 50 L cabinet, it features a 5:1 pump ratio (max. pressure: 3.5 MPa) and a powerful 11 L/min discharge rate.
▲Important Notice
Due to the product redesign, the following models will be discontinued, subject to stock availability: SGR-55, SGR110A5
For more information, please see the Yamada Bulletin.
Features
Specifications
Dimentional drawing

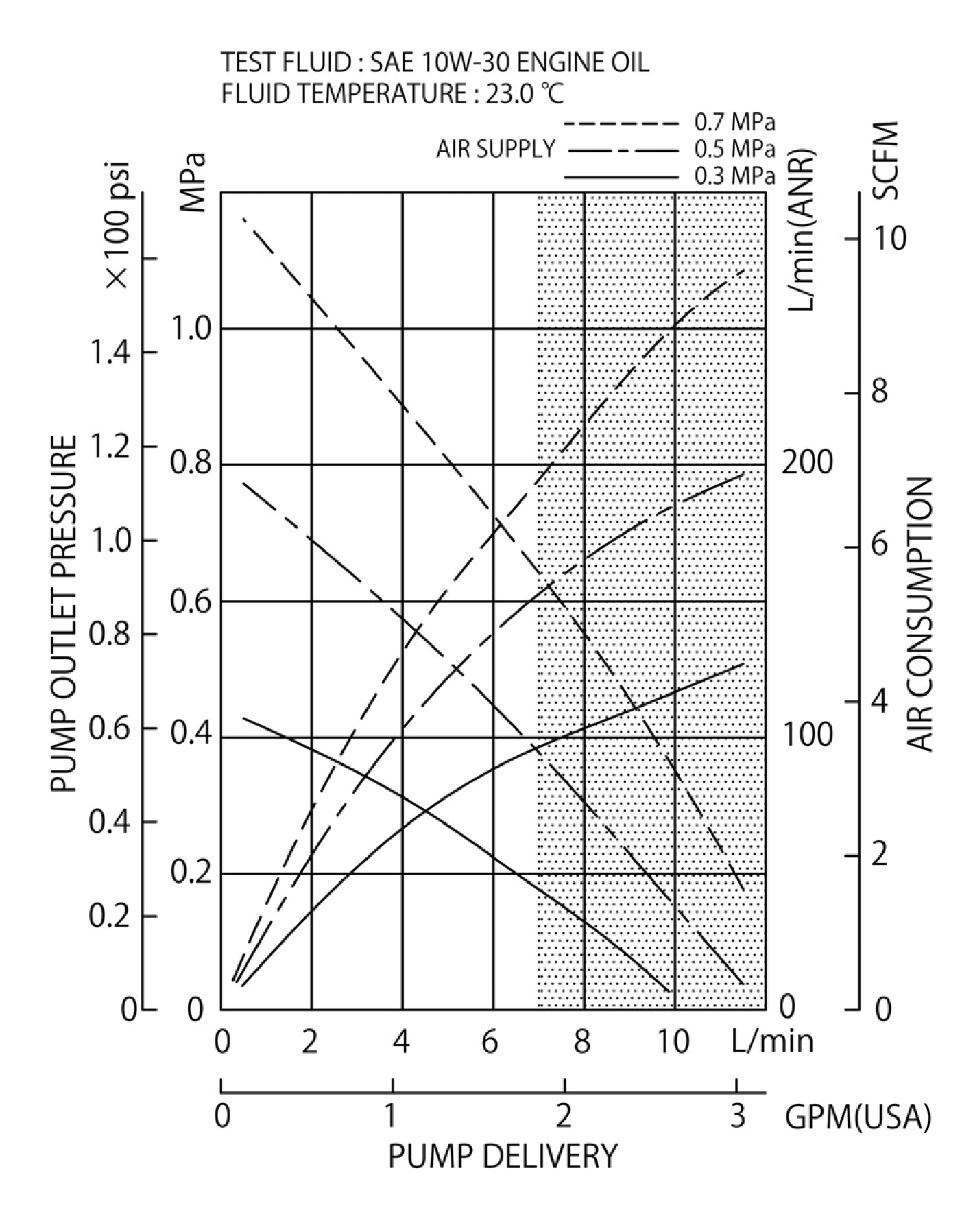

Performance curve
Downloads
Parts List
SGR-600
◎Specifications
| Item No. | 881261 | |
| Type | SGR-600 | |
| Material Connection | Discharge Port | Grip meter |
| Air Connection | Supply Port | Coupler plug PS-20PM |
| Appliable Oils | Lubricants non-corrosive to wetted parts （Engine oil, machine oil, etc.） | |
| Usable Containers | Equivalent to JIS Z 1620 Steel Straight Pails (Class 1 and 2) | |
| Operating Air Pressure | 0.2 - 0.7 MPa | |
| Weight | 19.3 kg | |
| Accessories |
801241 SKR-AR / Air Regulator |
|
◎Pump Performance
| Pump No. | 850834 |  |
| Pump Ratio | 1.8×1 | |
| Max Discharge Pressure* | 1.2MPa | |
| Max Discharge Rate* | 7L/min | |
| Max Air Consumption* | 130L/min (ANR) |
*Reference values @ Supply air pressure: 0.7MPa, Material: SAE 10W-30 engine oil, Material Temp: 20℃

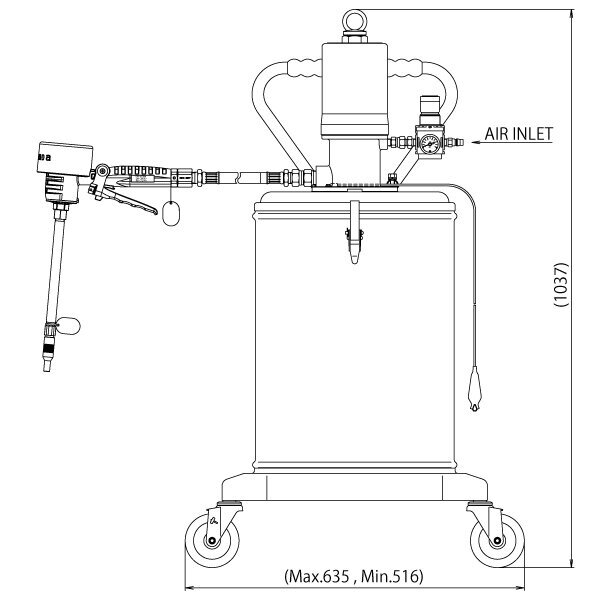

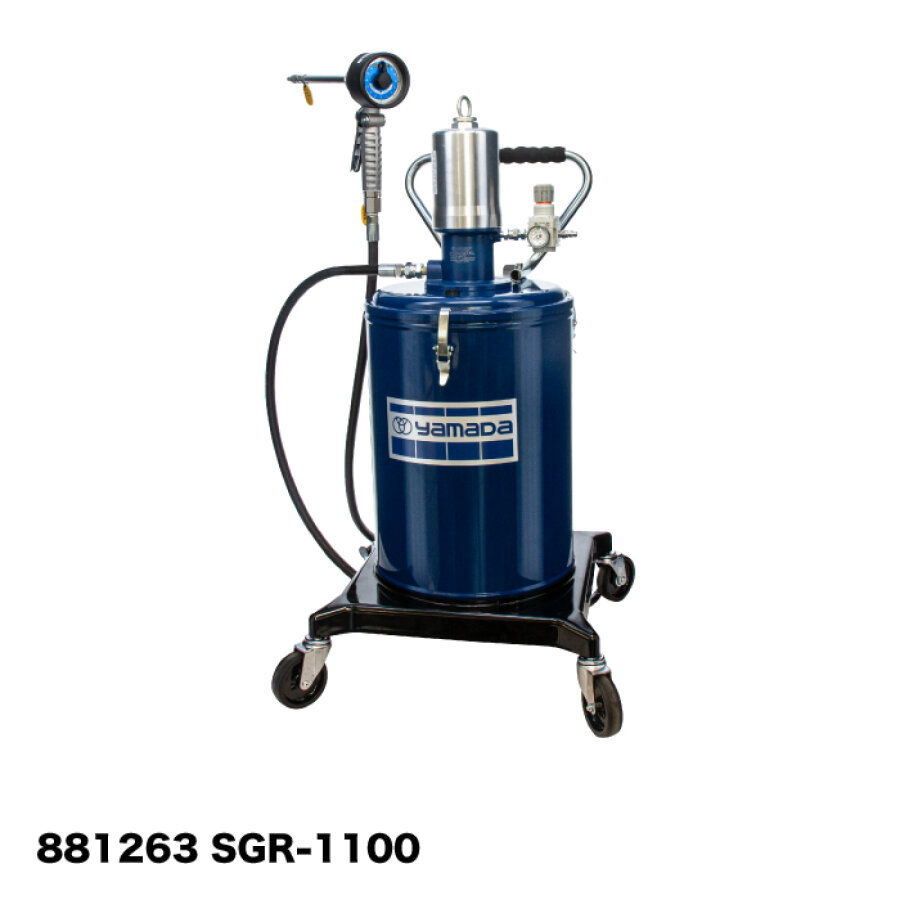

SGR-1100
◎Specifications
| Item No. | 881263 | |
| Type | SGR-1100 | |
| Material Connection | Discharge Port | Grip meter |
| Air Connection | Supply Port | Coupler plug PS-20PM |
| Appliable Oils | Lubricants non-corrosive to wetted parts （Engine oil, machine oil, etc.） | |
| Usable Containers | Equivalent to JIS Z 1620 Steel Straight Pails (Class 1 and 2) | |
| Operating Air Pressure | 0.2 - 0.7 MPa | |
| Weight | 25.7 kg | |
| Accessories |
802553 AR-110A / Air Regulator |
|

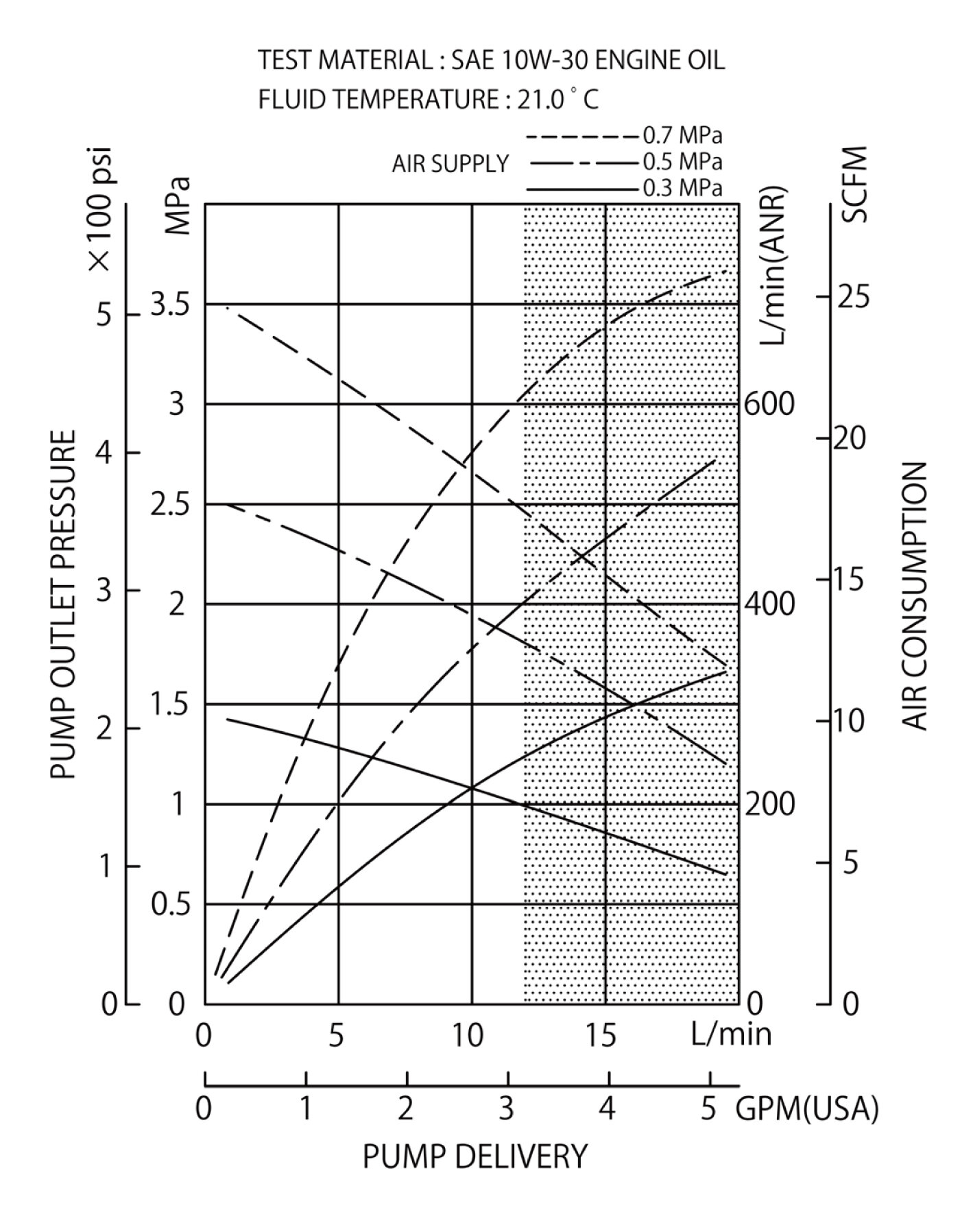

◎Pump Performance
| Pump No. | 851755 |  |
| Pump Ratio | 5×1 | |
| Max Discharge Pressure* | 3.5MPa | |
| Max Discharge Rate* | 11L/min | |
| Max Air Consumption* | 390L/min (ANR) |
*Reference values @ Supply air pressure: 0.7MPa, Material: SAE 10W-30 engine oil, Material Temp: 20℃

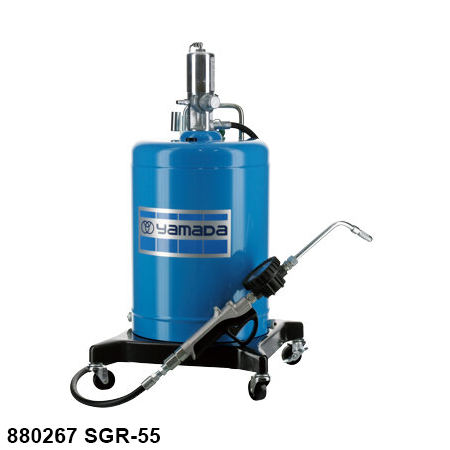

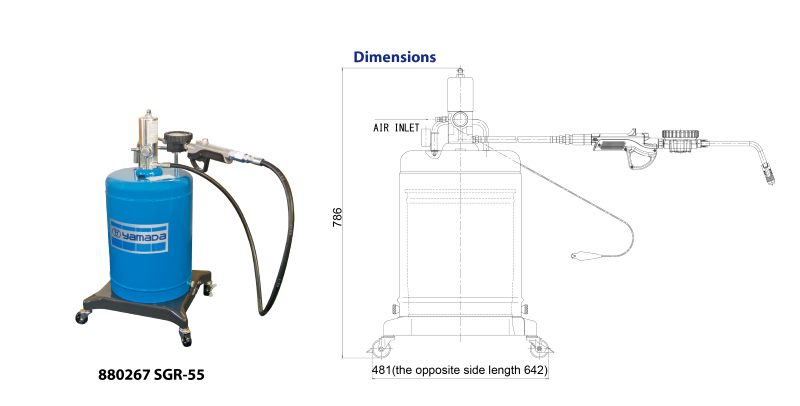

SGR-55
Due to the product redesign, this model will be discontinued once current stock runs out.
■ Specifications
| Model No. | Model | Capacity (L) | Weight (kg) | Standard Accessories |
| 880267 | SGR-55 | 20 | 16.0 | 850792 SGR-55PA Oil Transfer Pump.......... 1 686858 ODV-30D Electric Oil Control Gun... 1 695052 SGR-55-1.5M Oil Hose 1.5M........... 1 682905 Pail Can............................... ............ 1 680743 PS-20PM Air Coupler Plug. ............. 1 |
■ Pump specifications
| Pump Ratio | Maximum Discharge Pressure (MPa) | Maximum Discharge Volume (L/min) | Maximum Air Consumption (NL/min) |
| 1.8 : 1 | 1.2 | 7.0 | 200 |

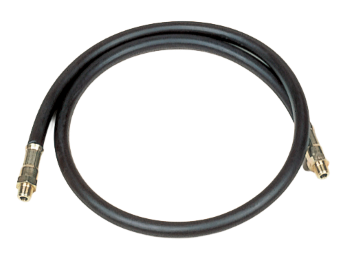

■ Optional Accessories
| Model No. | Model | Description |
| 695052 | SGR-55-1.5M | Oil Hose 1.5M Max 7MPa |
| 695051 | SGR-55-2M | Oil Hose 2M Max 7MPa |
| 695103 | SGR-55-3M | Oil Hose 3M Max 7MPa |

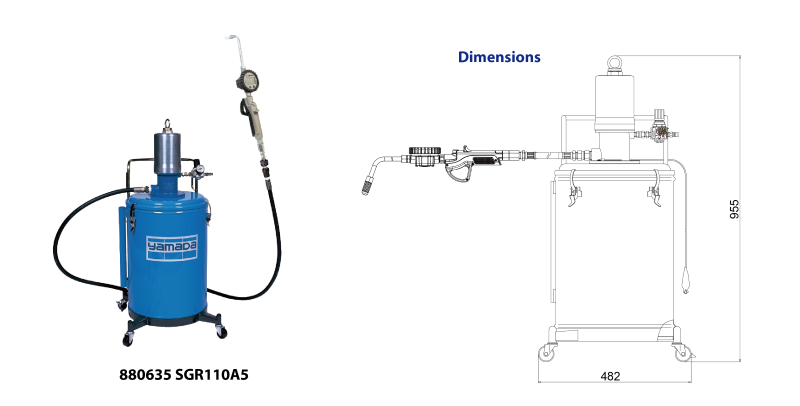

SGR-110A5
Due to the product redesign, this model will be discontinued once current stock runs out.
■ Specifications
| Model No. | Model | Capacity (L) | Weight (kg) | Standard Accessories |
| 880635 | SGR110A5 | 50 | 25 | 851755 PD110A5 Oil Transfer Pump................... 1 686858 ODV-30D Electric Oil Control Gun.......... 1 695700 110H-3M Oil Hose 3M............................. 1 802553 AR-110A Air Regulator w/ Air Plug........... 1 |
■ Pump specifications
| Pump Ratio | Maximum Discharge Pressure (MPa) | Maximum Discharge Volume (L/min) | Maximum Air Consumption (NL/min) |
| 5 : 1 | 3.5 | 11.0 | 630 |
■ Optional Accessories
| Model No. | Model | Description |
| 695092 | 110H-2M | Oil Hose 2M Max 7MPa |
| 695700 | 110H-3M | Oil Hose 3M Max 7MPa |
| 695156 | 110H-5M | Oil Hose 5M Max 7MPa |
