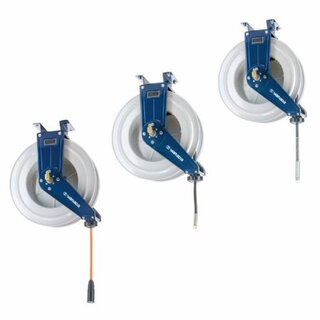

Hose Reel YSR Series

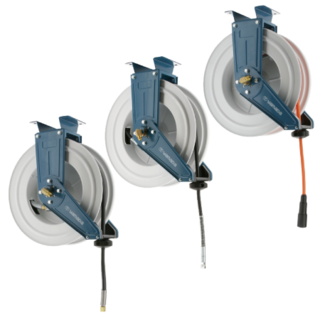

Open type hose reel with durable engineering plastic reel drum. Angle of delivery hose outlet can be adjusted depending on place of installation.
Features
Specifications

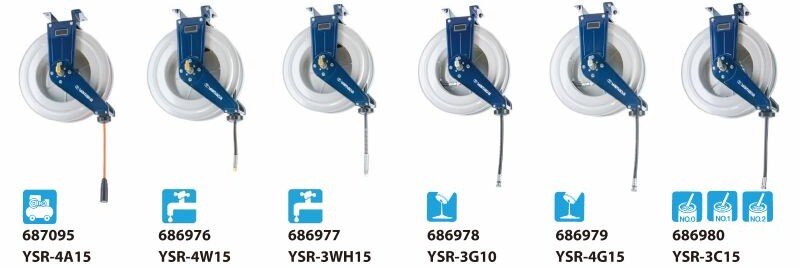

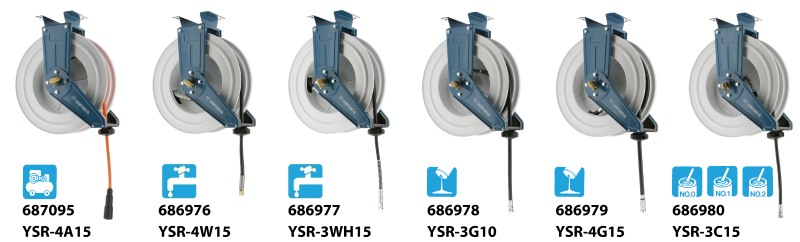

| Media | Model (Model No.) |
I.D. (mm) x Length (m) x Connection | Max. Pressure (MPa) |
Temp. Range (℃) |
Weight (kg) |
Dimensions (mm) H x W x Φ |
|
| Delivery Hose | Inlet Hose | ||||||
| Air | YSR-3A15 (687095) |
8 x 15 x Rc3/8 | 8 x 1 x G3/8 | 1.4 | -5 - 50 | 14.2 | 470 x 225 x 501 |
| YSR-4A15 (686975) |
11 x 15 x Rc1/2 | 11 x 1 x G1/2 | 15.9 | ||||
| Water | YSR-4W15 (686976) |
13 x 15 x G1/2 | 13 x 1 x G1/2 | 0.5 | 0 - 50 | 17.6 | |
| HP Hot Water | YSR-3WH15 (686977) |
9.5 x 15 x G3/8 | 9.5 x 1 x G3/8 | 14.0 | 0 - 50 | 19.9 | |
| Oil | YSR-3G10 (686978) |
9.5 x 10 x G3/8 | 9.5 x 1 x G3/8 | 7.0 | -5 - 50 | 17.2 | |
| YSR-4G15 (686979) |
12.7 x 15 x G1/2 | 12.7 x 1 x G1/2 | 21.9 | ||||
| Grease | YSR-3C15 (686980) |
9.5 x 15 x G3/8 | 9.5 x 1 x G3/8 | 35.0 | -5 - 50 | 22.6 | |
Dimentional drawing
Performance curve
Downloads
Parts List
Mounting Bracket

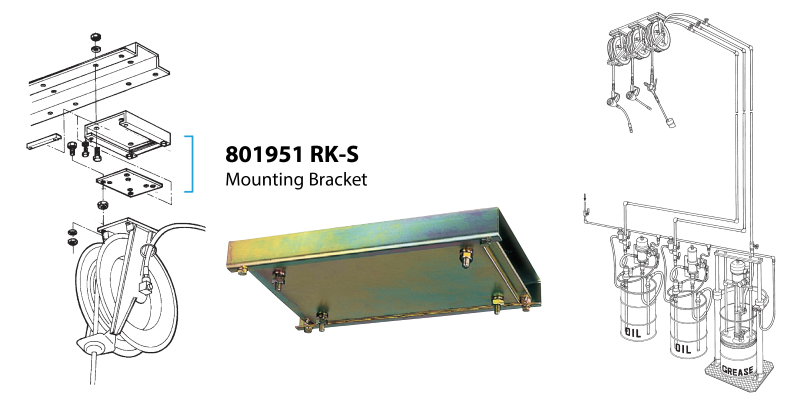

By simply using Mounting Bracket, it is possible to install multiple hose reels onto the ceiling easily.
