Compact Reel YR Series

Compact and light-weight air hose reel with durable and flexible 1/4" x 10M hose.

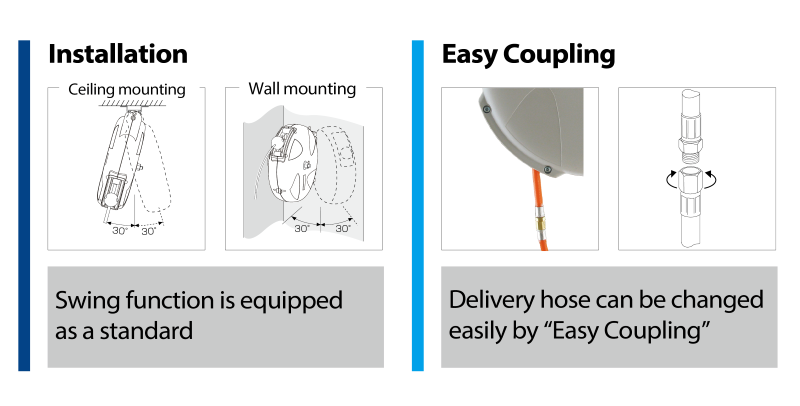

Features


Specifications

Model No. 686608
Model YR-2A10
Delivery Hose I. D. (mm) 6.5
Length (m) 10.0
Connection G1/4
Material Urethane
Maximum Pressure (MPa) 1.4
Inlet Hose Length (m) 0.8
Connection R1/4
Weight (kg) 3.5

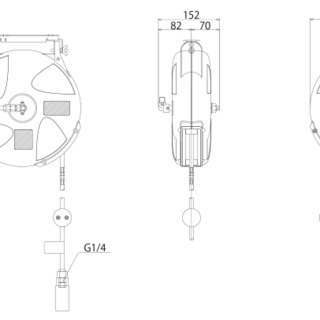

Dimentional drawing

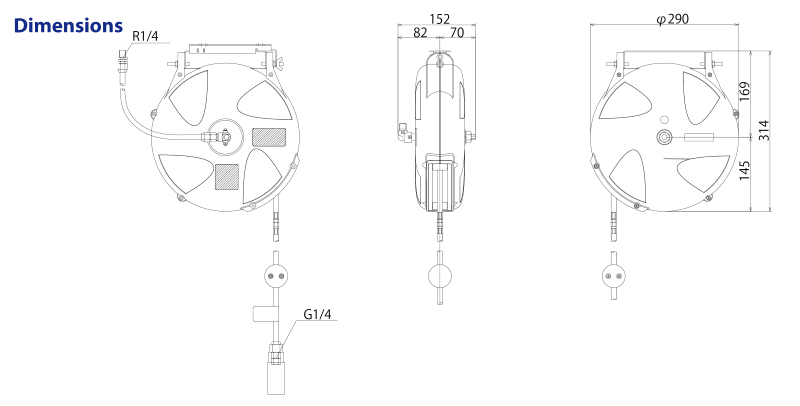

Dimensions

Performance curve

Downloads

Parts List
