Hand-Operated Grease Pumps
Hand-Operated Grease Pumps.
Grease Bucket Pumps "SK series" and Grease Pail Pump "HGP-200" are now available.
<Important Notice>
・Release of New Hand Bucket Pumps (2025-08-29)
Features
Specifications
Dimentional drawing
Performance curve
Downloads
Parts List
Grease Bucket Pump

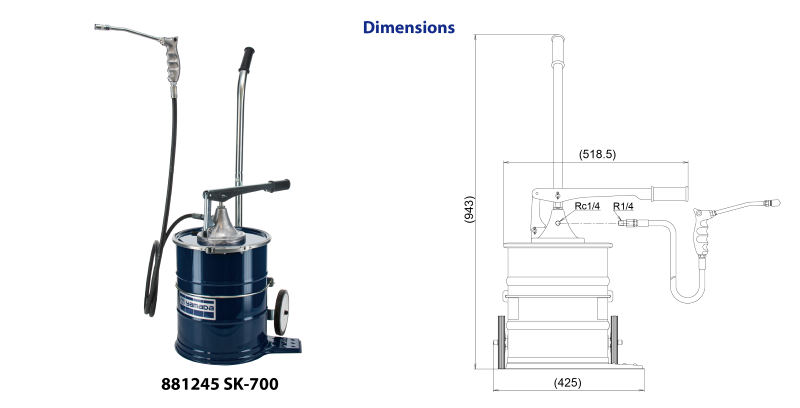

Follower plate is equipped with SK-700 as standard.

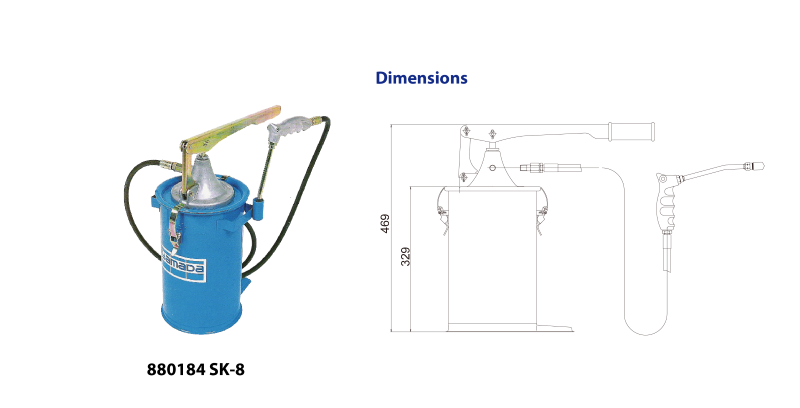

Compact SK-8 is suitable for field lubrication work.
■ Specifications
| Model No. | Model | Capacity (L) | Discharge Volume per Stroke (g) |
Stroke Length (mm) |
Weight (kg) |
Standard Accessories |
| 881245 | SK-700 | 16 | 3.2 | 38 - 43 | 10.1 | 855470 S-200 Dolly 800601 SK-G Grease Nozzle 695046 SK-2M Grease Hose 2M 801426 Follower Plate |
| 880194 | SK-8 | 10 | 3.2 | 38 - 43 | 6.0 | 800601 SK-G Grease Nozzle 695046 SK-2M Grease Hose 2M |
■ Optional Accessories
| Model No. | Model | Description | Remarks |
| 695100 | SK-3M | Grease Hose 3M | Maximum operating pressure: 18MPa |
| 695102 | SK-5M | Grease Hose 5M | Maximum operating pressure: 18MPa |

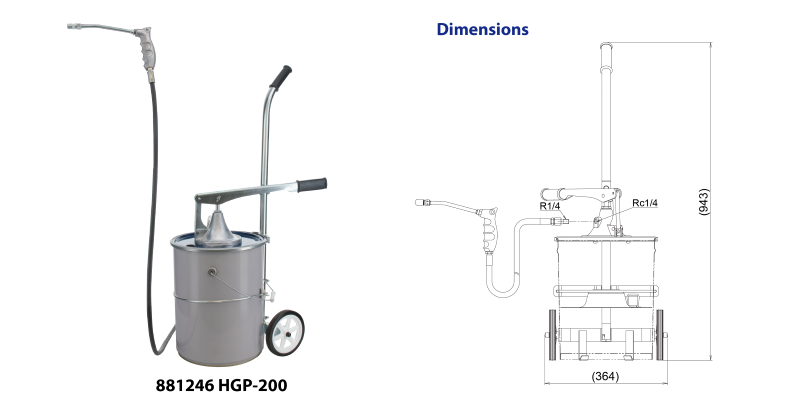

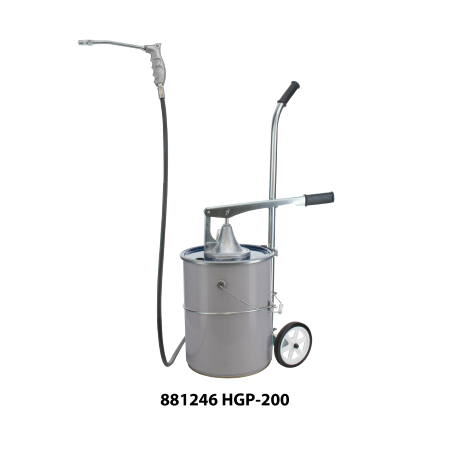

Grease Pail Pump
Simple pump that can be mounted on commercially availabe 20L pail.
■ Specifications
| Model No. | Model | Discharge Volume per Stroke (g) |
Stroke Length (mm) |
Weight (kg) |
Standard Accessories |
| 881246 | HGP-200 | 3.2 | 38 - 43 | 7.7 | 855470 S-200 Dolly 800601 SK-G Grease Nozzle 695046 SK-2M Grease Hose 2M 801426 Follower Plate |
■ Optional Accessories
| Model No. | Model | Description | Remarks |
| 695100 | SK-3M | Grease Hose 3M | Maximum operating pressure: 18MPa |
| 695102 | SK-5M | Grease Hose 5M | Maximum operating pressure: 18MPa |
