Grease Transfer Drum Pump
AIr-operated Drum Cover and follower plate kit for 180kg (400lb).
Grease Gun and wide variety of length of Grease Hoses can be chosen.
Features
Specifications
| Model No. | Model | Shank Length (mm) | Suitable Container | Weight (kg) | Components |

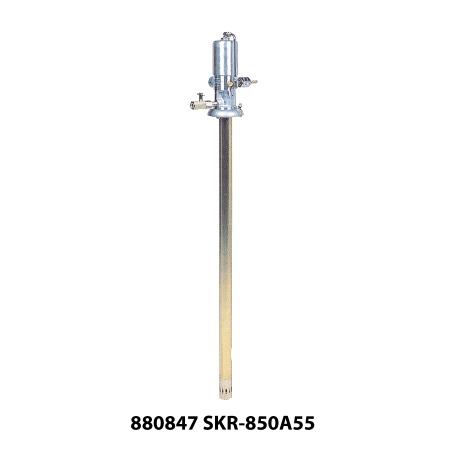

| 880847 | SKR-850A55 | 850 | 180kg (400Lbs) Drum | 6.8 | - 852501 SKR-850P55 Pump - 802159 Pump Flange - 800766 Check Valve - PS-20PM Air Coupler |
■ Pump specifications
| Pump Ratio | Maximum Discharge Pressure (MPa) | Maximum Discharge Volume (g/min) | Maximum Air Consumption (L/min ANR) |
| 55 : 1 | 38.5 | 320 | 212 |

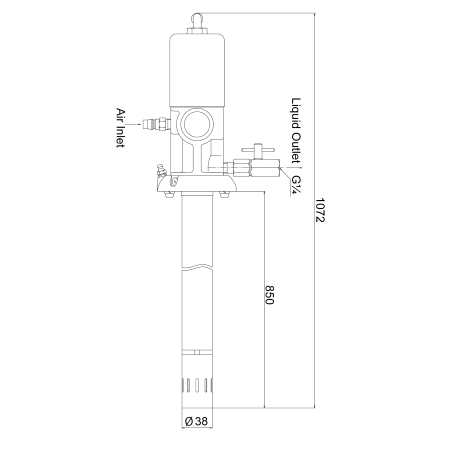

Dimentional drawing
Dimensions
Performance curve
Downloads
Parts List
Optional Accessories

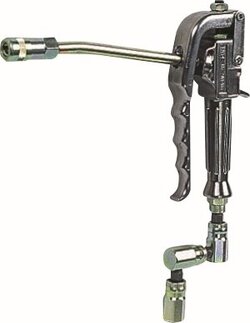

■ 851985 HPG-G
High Pressure Grease Gun
| Model No. | Model | Description | Components |
| 851985 | HPG-G | Grease Hose | - 852165 Gun Body - 800547 CNP-2 - 802910 HPG-J Swivel |
■ Grease Hoses
 |
| Grease Hose |
| Model No. | Model | Description | Remarks |
| 695062 | SKR-1.5M | Grease Hose | 1.5m (maximum operating pressure: 34.5MPa) |
| 695050 | SKR-2M | Grease Hose | 2m (maximum operating pressure: 34.5MPa) |
| 695034 | SKR-2.5M | Grease Hose | 2.5m (maximum operating pressure: 34.5MPa) |
| 695049 | SKR-3M | Grease Hose | 3m (maximum operating pressure: 34.5MPa) |
| 695098 | SKR-5M | Grease Hose | 5m (maximum operating pressure: 34.5MPa) |
| 695335 | SKR-7M | Grease Hose | 7m (maximum operating pressure: 34.5MPa) |
| 695099 | SKR-10M | Grease Hose | 10m (maximum operating pressure: 34.5MPa) |
