Electric Driven Grease Lubricators
AC100V electric, AC240V electric and DC24V battery driven grease lubricators.
Available with JIS18L/20L pail.
Features
Specifications
Dimentional drawing
Performance curve
Downloads
Parts List

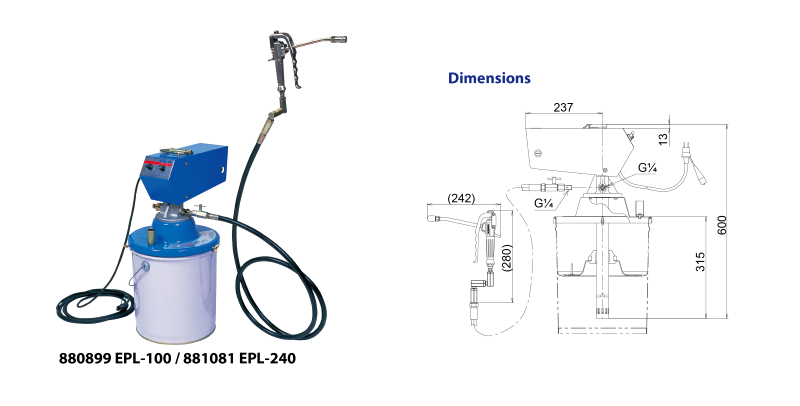

EPL-100/ EPL-240
■ Specifications
| Model No. | Model | Container | Power Source | Weight (kg) | Standard Accessories |
| 880899 | EPL-100 | JIS 18L Pail | AC100V 100W 2.0A |
13.0 | 851985 HPG-G HP Grease Gun 695034 SKR-2.5M Grease Hose 2.5M 803085 Follower Plate 802493 Power Cord Assy |
| 881081 | EPL-240 | AC240V 100W 0.83A |
■ Pump specifications
| Maximum Discharge Pressure (MPa) |
Discharge Volume (g/min) |
Rotating Speed (rpm) |
Quake Resistance |
| 28 | 200 | 90 - 145 | 4G |
■ Optional Accessories
 |
 |
 |
 |
| Pail Dolly | Grease Hoses | Caster | Grease Reel |
| Model No. | Model | Description | Remarks |
| 855470 | S-200 | Pail Dolly | |
| 802335 | KPL-55C | Caster | |
| 695062 | SKR-1.5M | Grease Hose | 1.5m (maximum operating pressure: 34.5MPa) |
| 695050 | SKR-2M | Grease Hose | 2m (maximum operating pressure: 34.5MPa) |
| 695034 | SKR-2.5M | Grease Hose | 2.5m (maximum operating pressure: 34.5MPa) |
| 695049 | SKR-3M | Grease Hose | 3m (maximum operating pressure: 34.5MPa) |
| 695098 | SKR-5M | Grease Hose | 5m (maximum operating pressure: 34.5MPa) |
| 695335 | SKR-7M | Grease Hose | 7m (maximum operating pressure: 34.5MPa) |
| 695099 | SKR-10M | Grease Hose | 10m (maximum operating pressure: 34.5MPa) |
| 686980 | YSR-3C15 | Grease Reel | 15m |

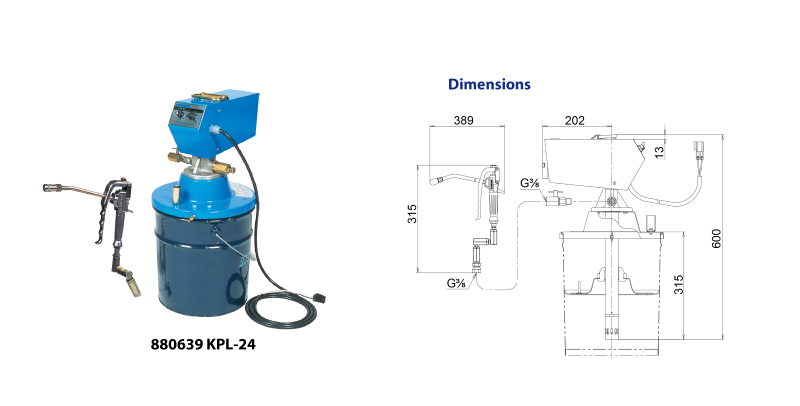

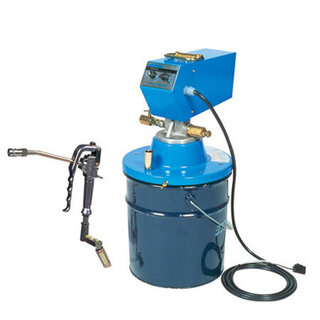

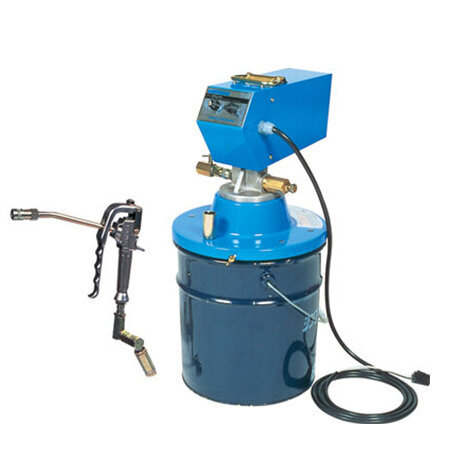

KPL-24
■ Specifications
| Model No. | Model | Container | Power Source | Weight (kg) | Standard Accessories |
| 880639 | KPL-24 | JIS 18L Pail | DC24V 90W 6.3A |
12.0 | 852164 HPG-G13 HP Grease Gun 803085 Follower Plate 685940 Union Adapter 802704 Power Cord Assy |
■ Pump specifications
| Maximum Discharge Pressure (MPa) |
Discharge Volume (g/min) |
Rotating Speed (rpm) |
Quake Resistance |
| 28 | 200 | 90 - 145 | 4G |
■ Optional Accessories
|
|
 |
|
|
| Pail Dolly | Grease Hoses | Extension power Cord | Caster | Grease Reel |
| Model No. | Model | Description | Remarks |
| 855470 | S-200 | Pail Dolly | |
| 802335 | KPL-55C | Caster | |
| 695303 | KPL-24-10M | Grease Hose | 10m (maximum operating pressure: 34.5MPa) |
| 802817 | KPL-E5M | Extension Power Cord | 5m |
| 686980 | YSR-3C15 | Grease Reel | 15m |
