Air-Operated Bearing Packing Unit
Air operated bearing grease packing unit is mounted on a cart with an air lift. The pump unit and lubricating cone are integrated into one unit, and the one-touch standard cone makes it easy to set bearings, allowing the machine to be used on a wide range of vehicles. Grease is discharged at high pressure (max. 45MPa) for efficient operation.
Features
Specifications
| Model No. | Model | Suitable Bearing Size | Suitable Grease* | Standard Accessories |
| 881141 | GP-850 | I.D. Φ15-100 | Oil temp. above 0℃: NLGI #0 - 3 Oil temp. below 0℃: NLGI #0 - 2 |
- 802629 Inductor Plate |
* Applicable range of NLGI No. is for reference only. Depending on the properties of the grease, it may not be usable even within the applicable range.
Dimentional drawing
Dimensions
Performance curve
Downloads
Parts List
Optional Accessories

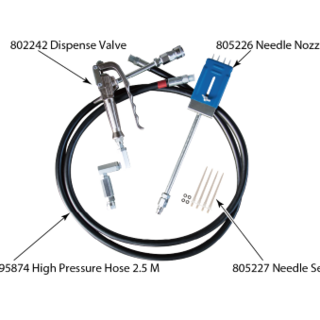

■ 854923 Attachment Kit N
| Model No. | Model | Description |
| *802556 | GP-NA | Needle Nozzle |
| *802242 | GP-G | Dispense Valve |
| *695874 | GP-H-2.5M | High Pressure Hose |
| 805227 | --- | Needle Set |
Remark: The parts with * in the table above are not induvidually supplied.
