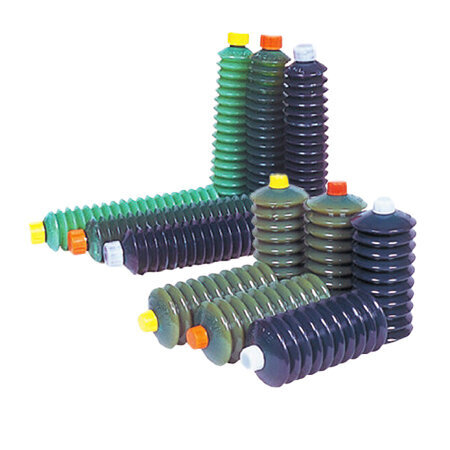

Bellows Cartridge Greases
YAMADA Bellows Cartridge Grease is reputed as clean, convenient and economical cartridge grease,
which is long-selling product in Japan.
With the tightly-sealed bellows, contamination and air-pocket can be eliminated.
By the screw cap, the cartridge change is possible in the middle of use.
Features
Specifications
Dimentional drawing
Performance curve
Downloads
Parts List
General Purpose Greases
■ Specifications
| Model No. | Model | Grease Type | NLGI No. | ASTM Value | Temp Range | Fits model |
| MMG-400 Series: 420mL (20pcs per Carton Box) | ||||||
| 682314 | MMG-400MP | Lithium | No.2 | 265-295 | -15℃ - 130℃ | CH-400 CH-650LL AMG-400 |
| 682313 | MMG-400CG | Chassis | No.1 | 310-340 | -10℃ - 80℃ | |
| 682312 | MMG-400MO | Molybdenum | No.2 | 265-295 | -15℃ - 150℃ | |
| MMG-200 Series: 210mL (20pcs per Carton Box) | ||||||
| 683311 | MMG-200MP | Lithium | No.2 | 265-295 | -15℃ - 130℃ | KH-35 |
| 683312 | MMG-200CG | Chassis | No.1 | 310-340 | -10℃ - 80℃ | |
| 683313 | MMG-200MO | Molybdenum | No.2 | 265-295 | -15℃ - 150℃ | |

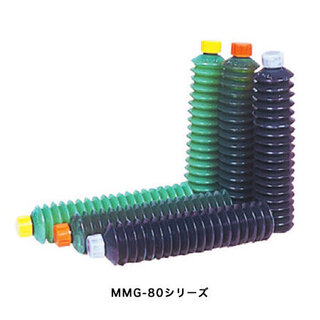

| MMG-80 Series: 85mL (30pcs per Carton Box) | ||||||
| 682593 | MMG-80MP | Lithium | No.2 | 265-295 | -15℃ - 130℃ | KH-16 KH-120 |
| 683309 | MMG-80CG | Chassis | No.1 | 310-340 | -10℃ - 80℃ | |
| 683310 | MMG-80MO | Molybdenum | No.2 | 265-295 | -15℃ - 150℃ | |
■ Grease Characteristics
| Grease Type | Features | Applications | Color of Cap |
| Lithium (MP) |
- Extreme-pressure - Water-resistant - Heat-resistant - High durability |
- Bearings for industrial equipment - Automobiles - Construction equipment and conveyor |
Yellow |
| Chassis (CG) |
- Extreme-pressure |
- Chassis of automobiles - Construction equipment - Conveyor and agrucultural equipment |
Orange |
| Molybdenum (MO) |
- Molybdenum-added - Extra high-pressure - Extra high-durrability |
- Construction equipment - Joints - Bearings - A part on which needs high-pressure and heating |
White |

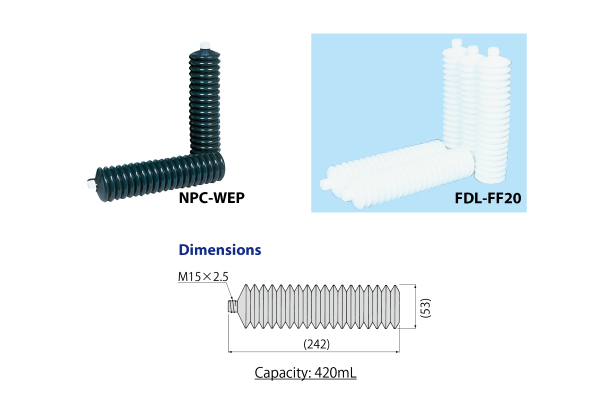

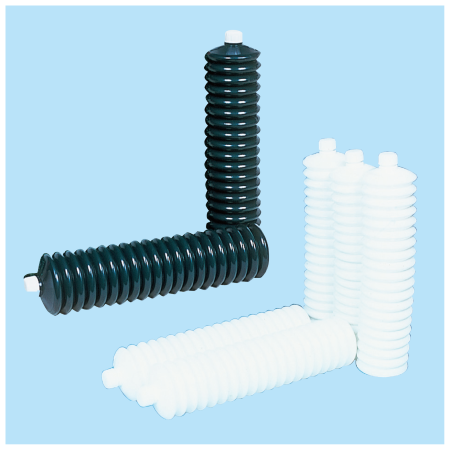

High Temp and Food Grade Greases
■ Specifications
| Model No. | Model (Qty per Box) |
Grease Type | NLGI No. | ASTM Value | Temp Range | Fits model |
| 687221 | NPC-WEP (20pcs) |
Urea | No.2 | 265-295 | -15℃ - 180℃ | CH-400 CH-650LL AMG-400 |
| 685800 | FDL-FF20 (20pcs) |
Aluminum Complex | No.2 | 265-295 | -20℃ - 180℃ | |
| 685801 | FDL-FF5 (5pcs) |
■ Grease Characteristics
| Grease Type | Features | Applications | Color of Cap |
| Urea (WEP) |
- Extra high-temperature | - Equipment for heavy industry - Paper industry - Cement industry - Any other application that requires high heat resistance and long life |
White |
| Aluminum Complex (FF) |
- Meets the requirements by NSF-H1* |
- Food industry | White |
* NSF: National Sanitation Foundation International
