Liquid Level Alarms

When the liquid level reaches a predetermined limit, this totally pneumatic liquid level sensor automatically stop the pumps and it blows the whistle instead. It can be mounted to 200L drum directly by 3/4" bung adapter. When using with Pressure Relief Valve and Return Hose, please use RL-SA Return Hose Adapter.

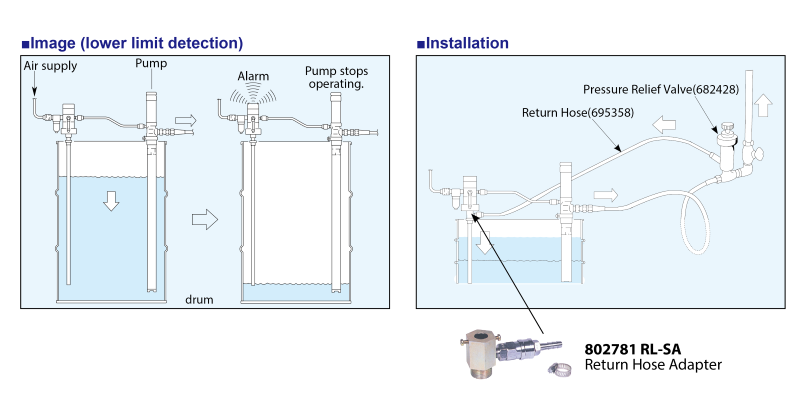

Features

Liquid Level Alarms

Specifications

Model
(Model No.)
Application Air Pressure
(MPa)
Max. Output
Air Flow
(L/min ANR)
Viscosity Limit Weight
(kg)
Standard Accessories
SA-4100
(480007)
Lower limit detection 0.25 - 0.7 1000 2.5Pa-s
(2,500cps)
2.2 PM-20PM
(Air Coupler)
SA-4110
(480008)
Upper limit detection

Dimentional drawing

Performance curve
